Getting Started with the INTENS Application Development

This demo project can be built on a Linux/Unix or Windows system with the following packages installed:

• Intens 5 (with REST-DB-Server)
• Python 3.12 (virtualenv)
• Java (JRE) 17
• CMake (Version >3.10, for Windows, see special information in appendix 6.1)
• MinGW/MSys (on Windows only, see appendix 6.1)

The installation process for these packages on Linux/Unix systems is straightforward. For Windows see appendix 6.1).

In addition to the above listed software the database service must be installed and started with a special installation script. The description of these steps can be found in section 1.3.

It is assumed that the reader has some basic knowledge of the bash shell and a text editor such as Emacs (recommended) or Vi.

The demo application is developed with the Intens framework. Each intens application has its own configuration which is interpreted at startup by the parser.

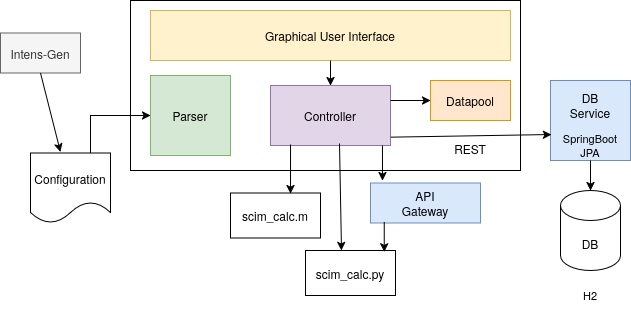

This application is composed of

• the Intens core module which provides the user interface and communicates with
  • the 2 external calculation modules: scim_calc.py, scim_calc.m and
  • the api-gateway that delegates the calculation command to the scim_calc function and

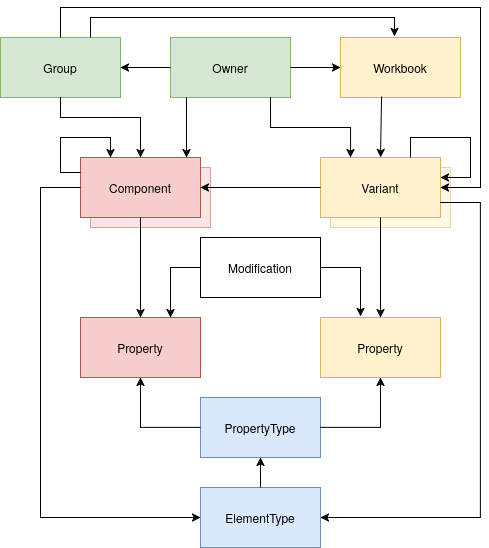

  • the DB-Service with Spring REST, a RDBMS database (H2) and a dashboard
• the configuration file which describes the required interfaces, the controller logic, the UI layout and the data to be managed.

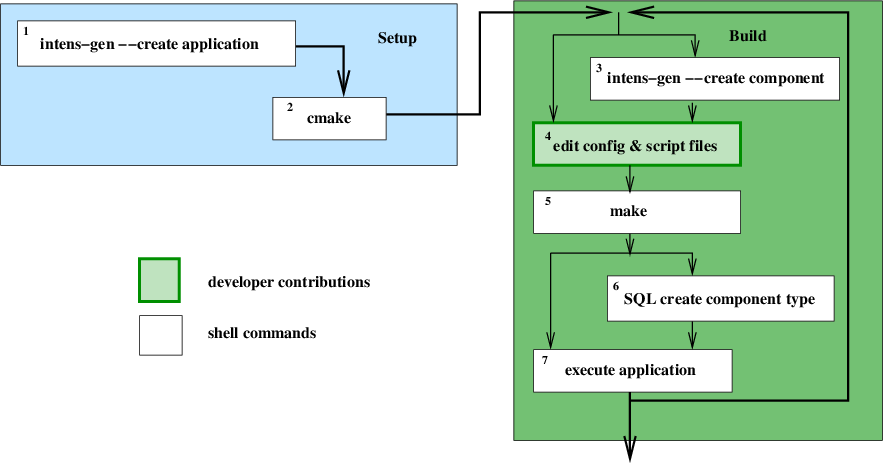

We will use the Intens generator intens-gen to create the necessary components (Motor and ShortCircuit) for the application. For each component a sub-folder is created in the etc/ directory with the name of the component, e.g. a motor component:

scim
📁 etc
    📁 motor
       📄 motor_datapool.inc
       📄 motor_functions.inc
       📄 motor_uiManager.inc
       📄 motor_streamer.inc
       📄 motor_operator.inc

In this getting-started guide the only files in the etc/motor directory that need to be modified are motor_datapool.inc and motor_uiManager.inc.

The final result can be downloaded from https://owncloud.semafor.ch/s/f0sTdM9gKZh61q4/download

1. Create a new project directory:

   $ mkdir intens-training
   $ cd intens-training


2. Download the DB server from https://owncloud.semafor.ch/s/B1RWj71nvPNO89t/download (100 MB) and unpack the file:

   ~/intens-training $ tar -xf workbook.tgz


3. Start the Database Service

   • for Linux (and MinGW/MSys): $ java -jar workbook.jar
   • for Windows: make sure java is installed (see 6.1.3), then double-click on workbook.jar.

   Or start it from the command line as shown above.

For maintainability reasons the Intens configuration is typically split into several files which are merged together during the build process. To provide a robust and portable environment the build process is based on the CMake tool.

CMake is a popular open-source, cross-platform family of tools designed to build, test and package software. CMake is used to control the software compilation process using simple platform and compiler independent configuration files, and generate native makefiles and workspaces that can be used in the compiler environment of your choice. More information here: https://cmake.org

Startup your shell. Before proceeding please make sure your PATH-Variable includes the intens bin folder.

• Add intens bin folder to your PATH variable:

PATH=$PATH:<installed_intens_directory>/bin

• Create a virtual environment with venv: This is used to manage python packages for different projects. Using venv allows you to avoid installing python packages globally which could break system tools or other projects. Make sure python3 is in your PATH when exec python.

~/intens-training $ python -m venv training
~/intens-training $ source training/bin/activate
(training) ~/intens-training $

On Windows, the activate file is placed in the folder 'Scripts' instead of 'bin'.

~/intens-training $ source training/Scripts/activate

The above command activates the python virtual environment named ``training'', and the string ``(training)'' in your shell prompt keeps you informed about that.

• Install the required python packages: The required packages for a specific project should be maintained in a file, usually named as requirements.txt. The following packages are required:

Jinja2
lxml
Mako
PyInstaller
python-dateutil
pyzmq
requests

Install the python packages:

(training) ~/intens-training $ pip install -r requirements.txt

Create the directory structure using the Intens application generator

(training) ~/intens-training $ intens-gen --create application

Identifier of the application (without blanks): scim
application title [scim]: Short Circuit Characteristics of Induction Motors
application title short name [SCIM]:
Destination directory of the application [/home/user/intens-training/scim]:

The bold faced texts represent the user inputs. The default values are shown within brackets.

• Create the build folder and the Makefiles: In order to separate the build files from the source files it is a recommended practice to create a dedicated build folder:

(training) ~/intens-training $ cd scim
(training) ~/intens-training/scim $ mkdir build

• Create the Makefiles by changing to the build folder and run configure:

(training) ~/intens-training/scim $ cd build
(training) ~/intens-training/scim/build $ ../configure

This command will populate the build tree with all required folders and Makefiles.

• Build the executable appplication:

(training) ~/intens-training/scim/build $ make

The created application can now be run and tested by invoking:

(training) ~/intens-training/scim/build $ ./scripts/scim

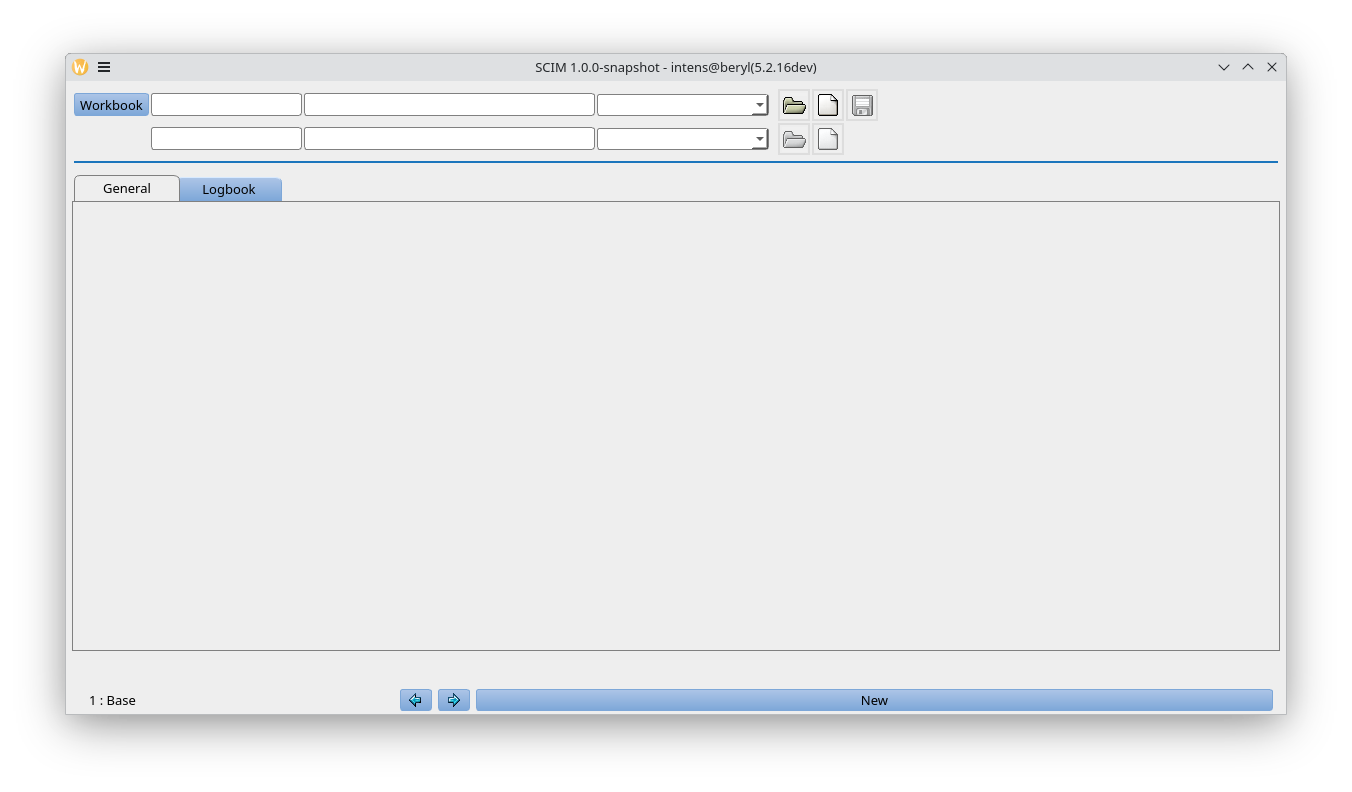

The main window presents a menu bar and a fieldgroup for opening and saving workbooks:

However there are currently no components included in this application. The next steps will add the motor component and the short-circuit data set. Close the application and proceed.

The most relevant parts of the created directory tree are

📁 scim
    📄 configure
    📄 CMakeLists.txt
    📁 api-gateway           Calculation interface
    │  📄 api-gateway.py
    │  📄 CMakeLists.txt
    │  📁 tests
    │  📁 zrpc
    📁 bitmaps               Bitmap/Icon files
    📁 config                Logging configuration
    📁 db                    DB configuration
    📁 docker
    📁 etc                   Intens Description Files
    │  📄 scim.des.in        Main description file
    │  📁 main_window        main dialog window
    │  │ 📄 main_window_uiManager.inc
    │  📁 project
    │  📁 variant
    📁 helm
    📁 mingw                 EXE File
    📁 nsis                  Windows Installer
    📁 po
    📁 qss                   Qt Style Files
    📁 scripts
    📁 templates
    📁 testing

• Change to the project root and create the motor component with the Intens application generator:

(training) ~/intens-training/scim/build $ cd ..
(training) ~/intens-training/scim $ intens-gen --create component

Identifier of the component (without blanks): motor
component type (without blanks) [Motor]:
component type label [Motor]:
component type label short name [MO]:
Destination directory of the application [/home/user/intens-training/scim]:

Only the bold faced text needs to be entered.

The above command creates the new folder etc/motor populated with these five files:

scim
📁 etc
   📁 motor
      📄 motor_datapool.inc
      📄 motor_functions.inc
      📄 motor_uiManager.inc
      📄 motor_streamer.inc
      📄 motor_operator.inc

• Open the file etc/motor/motor_datapool and include the data items in the Motor STRUCT block:

  STRUCT Motor: Component {
    INTEGER {EDITABLE, SCALAR}
      p {
        LABEL=_("Pole pairs"),
        HELPTEXT=_("Number of pole pairs"),
        DBUNIT="1"
      }
    ;
    REAL {EDITABLE, SCALAR}
      psityp {
        LABEL=_("Nom. Flux"),
        HELPTEXT=_("Stator Type flux"),
        UNIT="Vs"
      },
      rs_Tref {
        LABEL=_("Stator Resistance"),
        HELPTEXT=_("Stator Resistance at 20 deg Celsius"),
        UNIT="Ω"
      },
      rr_Tref {
        LABEL=_("Rotor Resistance"),
        HELPTEXT=_("Rotor Resistance at 20 deg Celsius"),
        UNIT="Ω"
      },
    Lls {
      LABEL=_("Stator Leakage"),
      HELPTEXT=_("Stator leakage inductance"),
      UNIT="mH",
      DBUNIT="H"
    },
    Lh {
      LABEL=_("Magnetizing Inductance"),
      HELPTEXT=_("Magnetizing inductance"),
      UNIT="mH",
      DBUNIT="H"
    },
    Llr {
      LABEL=_("Rotor Leakage"),
      HELPTEXT=_("Rotor leakage inductance"),
      UNIT="mH",
      DBUNIT="H"
    },
    rh {
      LABEL=_("Iron Resistance"),
      HELPTEXT=_("Resistance representing Iron Losses"),
      UNIT="Ω"
    },
    Iin {
      LABEL=_("Moment of Inertia"),
      HELPTEXT=_("Moment of Inertia of rotor"),
      UNIT="kg*m²"
    }
  ;
};

This defines the data structure for the motor. The following attributes can be used for the definition of the data types:

• Add the keyword SCALAR to the the motor declaration in the same file as we do only want to handle one motor:

Motor
  motor {
    LABEL=_("Motor"),
    PERSISTENT, SCALAR
  }
;

• Open the file motor_uiManager.inc and include the following lines into the FIELDGROUP motor_properties_fg

FIELDGROUP motor_properties_fg(
  LABEL(motor.p)        motor.p         UNIT(motor.p),
  LABEL(motor.psityp)   motor.psityp    UNIT(motor.psityp),
  LABEL(motor.rs_Tref)  motor.rs_Tref   UNIT(motor.rs_Tref),
  LABEL(motor.rr_Tref)  motor.rr_Tref   UNIT(motor.rr_Tref),
  LABEL(motor.Lls)      motor.Lls*1e3   UNIT(motor.Lls),
  LABEL(motor.Lh)       motor.Lh*1e3    UNIT(motor.Lh),
  LABEL(motor.rh)       motor.rh        UNIT(motor.rh),
  LABEL(motor.Llr)      motor.Llr*1e3   UNIT(motor.Llr),
  LABEL(motor.Iin)      motor.Iin       UNIT(motor.Iin)
);

The above lines define the content of the UI container motor_properties.fg. Dialogs can contain several types of UI containers such as fieldgroups, folders, tables, plots. Fieldgroups are UI containers that align their children horizontally and vertically like the cells of a chessboard. Horizontal lines are terminated by the character ','.

Dialogs (FORM) contain a collection of containers that are again aligned horizontally and vertically. The collection is grouped by pairs of parentheses. Each pair toggles the direction of alignement starting with horizontal direction.

The dialog motor_form includes 2 fieldgroups that are aligned vertically:

FORM motor_form{_("Motor properties")}(
  (
    (
      motor_top_section_fg,
      motor_properties_fg
    )
  )
);

• Change again to the build folder, type make and startup the application:

(training) ~/intens-training/scim $ cd build
(training) ~/intens-training/scim/build $ make && ./scripts/scim

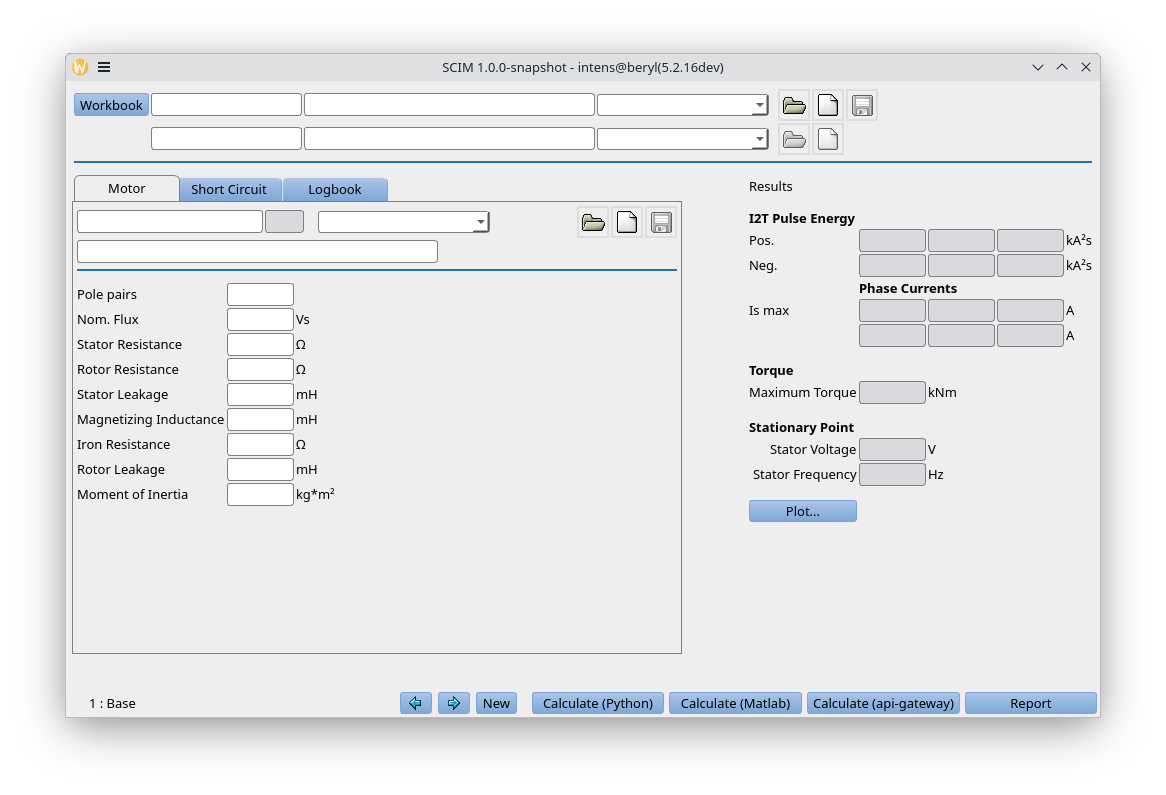

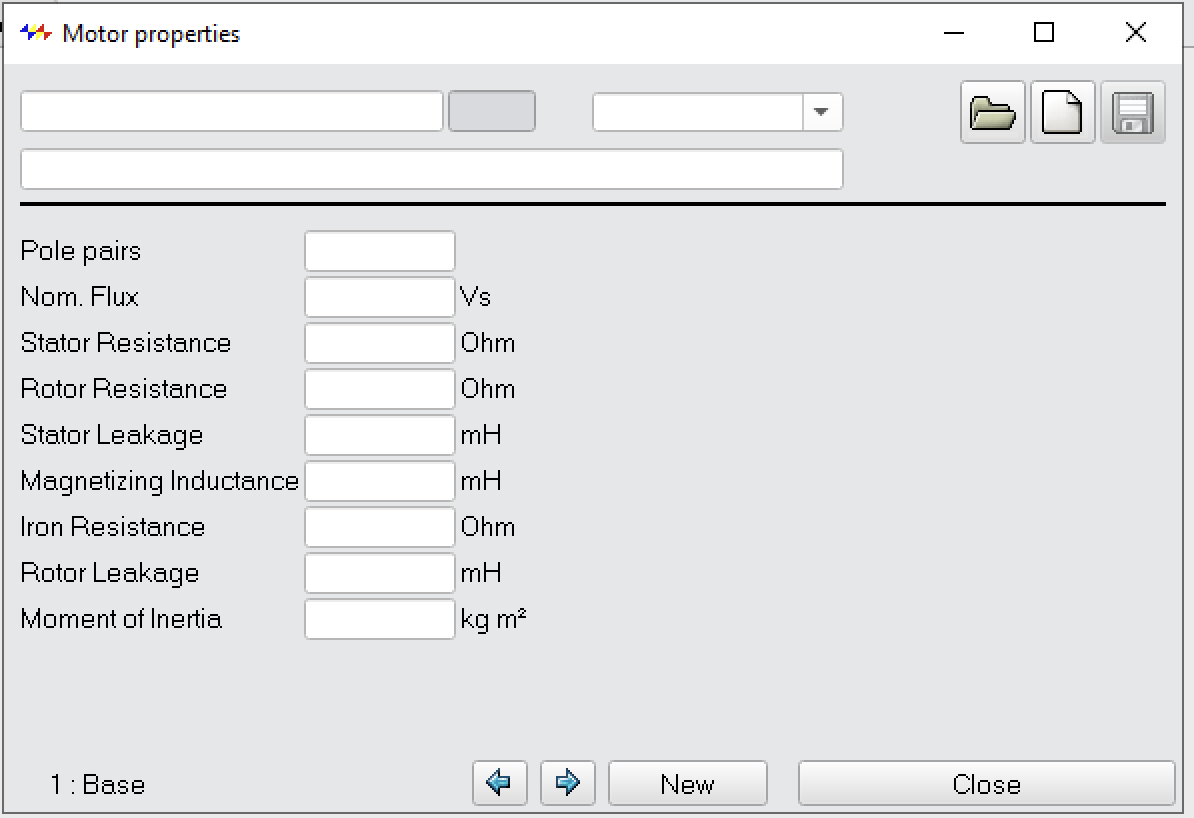

• Open the form Motor properties which you find in the menu Forms. The following dialog should be displayed:

Using this dialog you can now create, open or update motor components.

In contrast to the motor the short-circuit data has no identity and therefor cannot be modeled as a component. We attach it to the variant:

(training) ~/intens-training/scim/build $ cd ..
(training) ~/intens-training/scim $ intens-gen --create variant

Identifier of the variant (without blanks): short_circuit
variant type (without blanks) [ShortCircuit]:
component type label [Short Circuit]:
component type label short name [SC]:
Destination directory of the application [/home/user/intens-training/scim]:

Only the bold faced text needs to be entered.

The above command creates the new folder etc/short_circuit populated with the uiManager and functions file and adds VariantShortCircuit to the variant datapool:

scim
📁 etc
   📁 variant
   │  📄 variant_uiManager.inc
   │     ...
   │
   📁 short_circuit
      📄 short_circuit_uiManager.inc
      📄 short_circuit_functions.inc

• Open the file etc/variant/variant_datapool.inc and insert the following lines to the VariantShortCircuit:

STRUCT VariantShortCircuit  {
  INTEGER{EDITABLE, SCALAR}
    nsamples { LABEL=_("Number of samples") }
  ;
  REAL {EDITABLE, SCALAR}
    u1 {
      LABEL=_("Stator voltage"),
      HELPTEXT=_("stator maximum voltage"),
      UNIT="V"
    },
    psi {
      LABEL=_("Stator flux"),
      HELPTEXT=_("stator maximum flux"),
      UNIT="Vs"
    },
    tload {
      LABEL=_("Load Torque"),
      HELPTEXT=_("load torque at begin of short circuit"),
      UNIT="Nm"
    },
    speed {
      LABEL=_("Shaft Speed"),
      HELPTEXT=_("shaft speed at load torque"),
      UNIT="1/min", DBUNIT="1/s"
    },
    tshort {
      LABEL=_("T short"),
      HELPTEXT=_("Start time of short circuit"),
      UNIT="ms", DBUNIT="s"
    },
    tend {
      LABEL=_("T end"),
      HELPTEXT=_("End time of calculation period"),
      UNIT="ms", DBUNIT="s"
    }
  ;
};

• Add this content to the file short_circuit_uiManager.inc:

FIELDGROUP short_circuit_properties_fg(
  LABEL(variant.short_circuit.nsamples)  variant.short_circuit.nsamples,
  LABEL(variant.short_circuit.u1)        variant.short_circuit.u1
                                           UNIT(variant.short_circuit.u1),
  LABEL(variant.short_circuit.psi)       variant.short_circuit.psi
                                           UNIT(variant.short_circuit.psi),
  LABEL(variant.short_circuit.tload)     variant.short_circuit.tload
                                           UNIT(variant.short_circuit.tload),
  LABEL(variant.short_circuit.speed)     variant.short_circuit.speed*60
                                           UNIT(variant.short_circuit.speed),
  LABEL(variant.short_circuit.tshort)    variant.short_circuit.tshort*1e3
                                           UNIT(variant.short_circuit.tshort),
  LABEL(variant.short_circuit.tend)      variant.short_circuit.tend*1e3
                                           UNIT(variant.short_circuit.tend)
);

• Type make in the build directory and start the scim-script:

(training) ~/intens-training/scim $ cd build
(training) ~/intens-training/scim/build $ make && ./scripts/scim

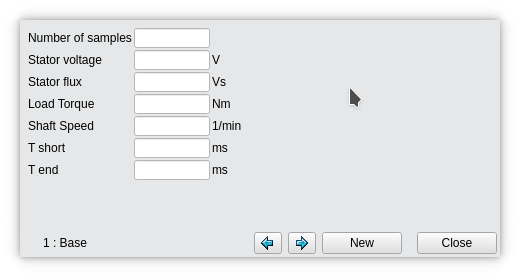

• Open the form Short Circuit properties which you find in the menu Forms. The following dialog should be displayed:

Note that the database buttons are missing here because short circuit is not a component. The short circuit properties are included in the variant.

• In the etc folder of the project root create a new folder for the configuration of the calculation results:

(training) ~/intens-training/scim/build $ cd ..
(training) ~/intens-training/scim $ mkdir etc/result

• Create the file etc/result/result_datapool.inc with following content:

DATAPOOL
  STRUCT Result {
    REAL
      i2t_pos_max {
        LABEL=_("I2t Max (Pos)"),
        UNIT="kA²s"
      },
      i2t_neg_max {
        LABEL=_("I2t Max (Pos)"),
        UNIT="kA²s"
      },
      u1 {
        LABEL=_("Stator Voltage"),
        UNIT="V"
      },
      f1 {
        LABEL=_("Stator Frequency"),
        UNIT="Hz"
      },
      tpeak {
        LABEL=_("Maximum Torque"),
        UNIT="kNm"
      },
      ismin {
        LABEL=_("Is min"),
        UNIT="A"
      },
      ismax {
        LABEL=_("Is max"),
        UNIT="A"
      },
      t {
        LABEL=_("time"),
        UNIT="s"
      },
      torque {
        LABEL=_("torque"),
        UNIT="Nm"
      },
      is {
        LABEL=_("current"),
        UNIT="A",
        HELPTEXT=_("Phase Currents")
      },
      i2t_pos {
        LABEL=_("I2T pos"),
        UNIT="kA²s",
        HELPTEXT=_("I2T Pulse Energy for positive currents")
      },
      i2t_neg {
        LABEL=_("I2T neg"),
        UNIT="kA²s",
        HELPTEXT=_("I2T Pulse Energy for negative currents")
      };
    }
  ;

  Result result;

  INTEGER {EDITABLE}
    plot_button {
      LABEL=_("Plot..."),
      BUTTON,
      FUNC=map_plot_form
    }
  ;
END DATAPOOL;

Note that the variable result has no PERSIST attribute as its values will not be saved in the database.

• Create the file result/result_uiManager.inc with following content (a field group and 2 plot diagrams for currents and torque)

UI_MANAGER
  FIELDGROUP results_fg {_("Results")}(
    VOID,
    "<b>" & _("I2T Pulse Energy") & "</b>"{ COLSPAN = 3 },
    _("Pos.")
    result.i2t_pos_max[0]*1e-3:8:1
    result.i2t_pos_max[1]*1e-3:8:1
    result.i2t_pos_max[2]*1e-3:8:1
    UNIT(result.i2t_pos_max),
    _("Neg.")
    result.i2t_neg_max[0]*1e-3:8:1
    result.i2t_neg_max[1]*1e-3:8:1
    result.i2t_neg_max[2]*1e-3:8:1
    UNIT(result.i2t_neg_max),
    VOID
    "<b>" & _("Phase Currents") & "</b>"{ COLSPAN = 3 },
    LABEL(result.ismax)
    result.ismax[0]:8:1
    result.ismax[1]:8:1
    result.ismax[2]:8:1
    UNIT(result.ismax),
    VOID
    result.ismin[0]:8:1
    result.ismin[1]:8:1
    result.ismin[2]:8:1
    UNIT(result.ismax),
    VOID,
    "<b>" & _("Torque") & "</b>"{ COLSPAN = 3 },
    LABEL(result.tpeak)
    result.tpeak*1e-3:8:1
    UNIT(result.tpeak),
    VOID,
    "<b>" & _("Stationary Point") & "</b>"{ COLSPAN = 3 },
    LABEL(result.u1) >
    result.u1:8:2
    UNIT(result.u1),
    LABEL(result.f1) >
    result.f1:8:2
    UNIT(result.f1),
    VOID,
    plot_button
  )
;

PLOT2D sc_plot {_("Short circuit plot")} (
  plot {
    _("Short Circuit Plot"),
    YAXIS1 {LABEL="A"},
    YAXIS2 {LABEL="kNm"}
  }(
    result.t[*]*1e3 {LABEL=_("time/ms")}
    (
      result.is[0,*] {LABEL=_("Is a"), YAXIS1},
      result.is[1,*] {LABEL=_("Is b"), YAXIS1},
      result.is[2,*] {LABEL=_("Is c"), YAXIS1},
      result.torque[*] {LABEL=_("Torque"), YAXIS2}
    )
  )
);

PLOT2D sc_torque_plot {_("Short circuit torque plot")} (
  plot {
    _("Short Circuit Torque Plot"),
    YAXIS1 {LABEL="kNm"}
  }(
    result.t[*]*1e3 {LABEL=_("time/ms")} (
      result.torque[*] {LABEL=_("Torque"), YAXIS1}
    )
  )
);

FOLDER plot_folder (
  [_("All"): plot_tab](
    sc_plot
  ),
  [_("Torque, Current"): plot2_tab](
    sc_torque_plot
  )
);

FORM plot_form {HIDDEN} (plot_folder);

END UI_MANAGER;

FUNCTIONS
  FUNC map_plot_form {
    MAP(plot_form);
  };
END FUNCTIONS;

• Create the file etc/calculation_interface.inc in the etc folder with following content:

DATAPOOL
  STRUCT
    MqResponse {
      STRING {SCALAR} status;
      STRING message;
    }
  ;
  MqResponse mq_response;
  STRUCT ResultReport {
    CDATA short_circuit;
  };
  ResultReport report;
END DATAPOOL;

UI_MANAGER
FIELDGROUP short_circuit_report_fg (
  report.short_circuit:80:10 {EXPAND}
);

FORM short_circuit_report_form {
  _("Short Circuit Report"), HIDDEN } (
  short_circuit_report_fg
);
MENU "Reports" (
  FORM short_circuit_report_form
);
END UI_MANAGER;

STREAMER
  sc_input_stream{JSON}(motor, variant.short_circuit);
  sc_output_stream{JSON}(result);
  report_input_stream{JSON}(motor, variant.short_circuit, result);
  report_output_stream{JSON}(report.short_circuit);
  mq_response_stream{JSON}(mq_response);
END STREAMER;

OPERATOR
  PROCESS imsc_python: BATCH{"scim_calc.py"};
  PROCESS imsc_matlab: MATLAB;

  PROCESSGROUP
    imsc_python_pg { _("Calculate (Python)"), HIDDEN, SILENT, NO_LOG }(
      sc_output_stream{DISPLAY=NONE} = imsc_python(sc_input_stream);
    ),
    imsc_matlab_pg { _("Calculate (Matlab)"), HIDDEN, SILENT, NO_LOG }(
      [result] = imsc_matlab(motor, variant.short_circuit);
    )
  ;

  MESSAGE_QUEUE python_mq {
    REQUEST,
    HOST=RESOURCE("API_GATEWAY_HOST"),
    PORT_REQUEST=RESOURCE("API_GATEWAY_PORT"),
    TIMEOUT=0
  };

  TASK calculate {_("Calculate (api-gateway)")}{
    REQUEST(MESSAGE_QUEUE=python_mq,
              HEADER="scimcalc",
              REQUEST(sc_input_stream),
              RESPONSE(mq_response_stream, sc_output_stream)
            );
   IF (mq_response.status != "ok" && VALID(mq_response.message)) {
       MESSAGEBOX("<h3>" & _("Message") & "</h3><p>" + mq_response.message + "</p>");
   }
  };
  TASK report_task {_("Report")}{
    REQUEST(MESSAGE_QUEUE=python_mq,
              HEADER="report",
              REQUEST(report_input_stream),
              RESPONSE(mq_response_stream, report_output_stream)
            );
   IF (mq_response.status != "ok" && VALID(mq_response.message)) {
       MESSAGEBOX("<h3>" & _("Message") & "</h3><p>" + mq_response.message + "</p>");
     }
  };
END OPERATOR;

• Include the following lines in the file etc/scim.des.in right before the UI_MANAGER section:

#include <result/result_datapool.inc>
#include <result/result_uiManager.inc>

#include <calculation_interface.inc>

UI_MANAGER
..

• Open the file etc/main_window/main_window_uiManager.inc and modify the main_window folder definition:

FOLDER main_window_folder (
  [_("Motor"): motor_tab] (
    (motor_top_section_fg,
     motor_properties_fg)
  ),
  [_("Short Circuit"): short_circuit_tab] (
     short_circuit_properties_fg
  ),
  [_("Logbook"): logbook_tab] (
    (
      logbook_action_fg,
      logbook_text_fg
    )
  )
);

• Modify the main form definition:

FORM main_window_form {
  "SCIM", MAIN
} (
  main_window_top_section_fg,
  (main_window_folder, VOID(20), results_fg)
);

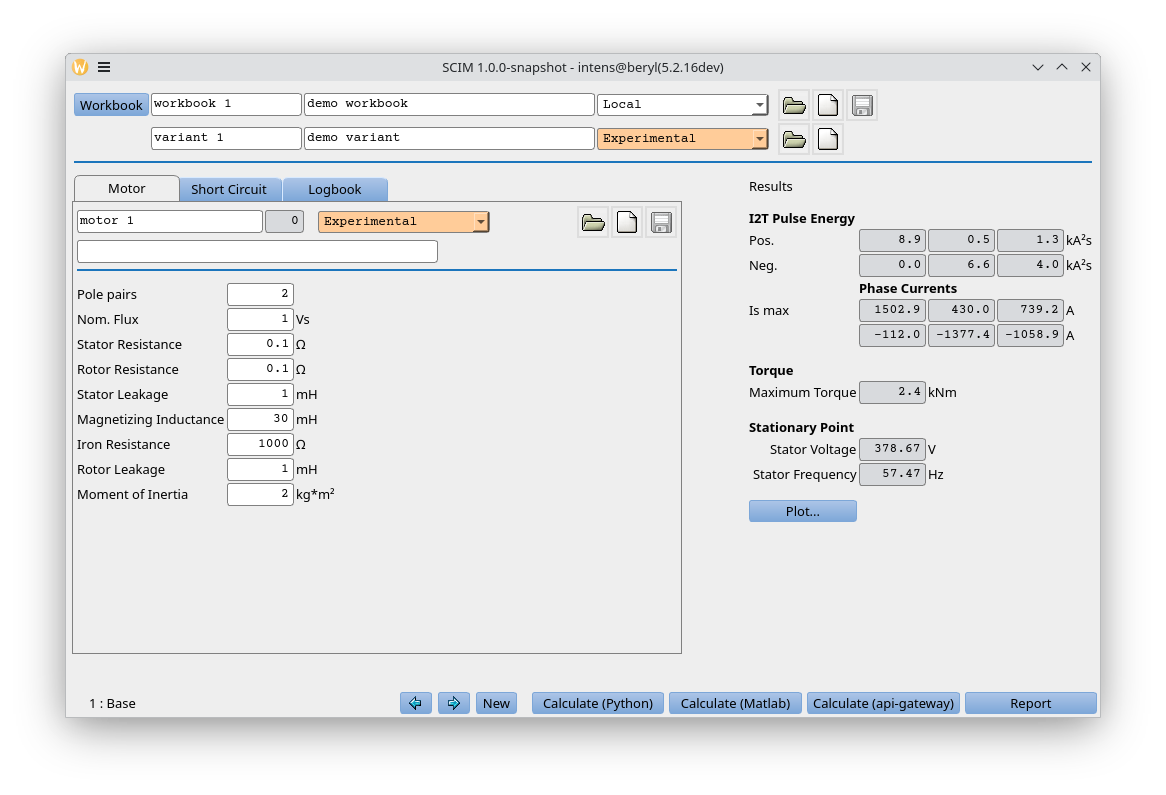

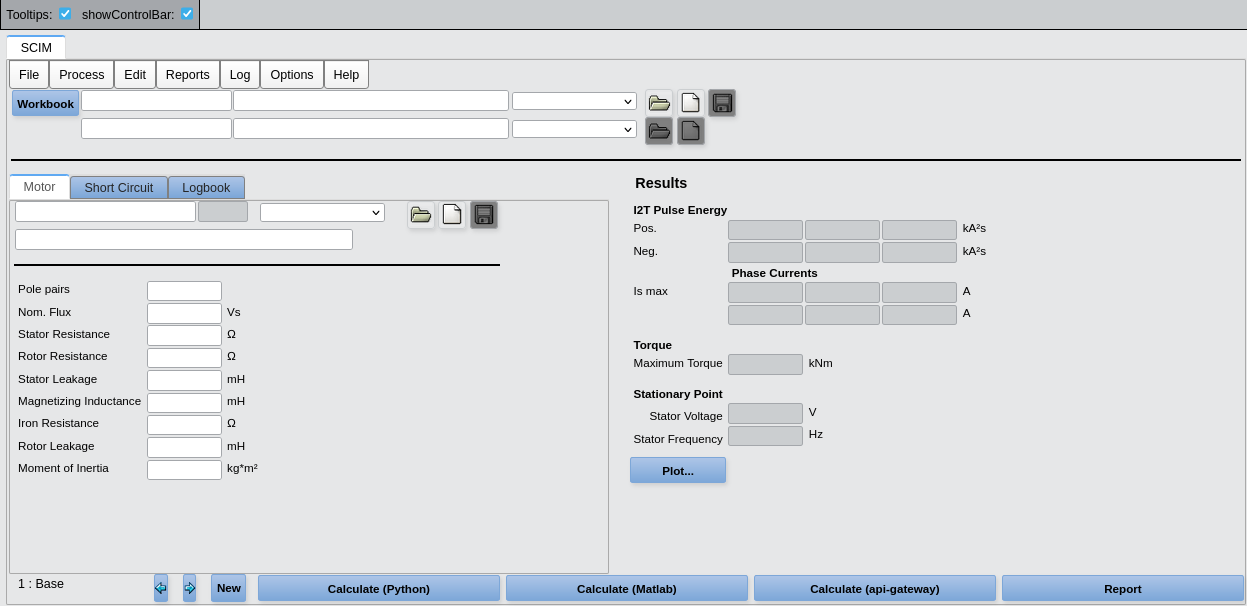

• Check if the application is running now: Type make and start the scim-script in the build folder:

(training) ~/intens-training/scim $ cd build
(training) ~/intens-training/scim/build $ make && ./scripts/scim

• Create the file api-gateway/scim_calc.py with this content:

#!/usr/bin/env python
#
# calculate the short circuit characteristics
# of an induction motor
#
import sys
import json
import tractools
import logging

def calculate_sc(parameters):
    m = tractools.InductionMotor(parameters['motor'])
    sc = tractools.Component(parameters['short_circuit'])
    return tractools.imsc(m, sc)


if __name__ == "__main__":
    logging.basicConfig(level=logging.INFO,
                        format='%(asctime)s %(message)s')
    json.dump(calculate_sc(json.load(sys.stdin)), sys.stdout)

The file scim_calc.py must have set the execute permission flag if invoked directly:

(training) ~/intens-training/scim $ chmod +x ./api-gateway/scim_calc.py

• Insert the filename scim_calc.py in the DIST_BIN_SCRIPTS variable in the file api-gateway/CMakeLists.txt

  ...
set(DIST_BIN_SCRIPTS api-gateway.py
  config.py
  scim_calc.py
)
  ...

• Download and extract the calculation code

(training) ~/intens-training/scim $ for f in gTikcPcOBTfDdKJ sij6BV4rC4mByf0
 do wget https://owncloud.semafor.ch/s/$f/download -O - | tar xzf -
 done

This will create and populate the directories api-gateway/tests, api-gateway/tractools, matlab.

• To invoke the calculation function of scim_calc.py and the report generation function from the api-gateway add the following lines to the file scim/api-gateway/api-gateway.py

@zrpc.route("scimcalc")
def scimcalc(request):
    app.logger.info("Scim Calc %s", request)
    try:
        import scim_calc

        return [
            {"status": "ok", "message": "successfully completed"},
            scim_calc.calculate_sc(request),
        ]
    except Exception as e:
        app.logger.error(e, exc_info=True)
        return [{"status": "error", "message": str(e)}]

@zrpc.route("report")
def report(request):
    import tractools.repgen
    pmMotor = request.get("motor", {})
    shortCircuit = request.get("short_circuit", {})
    result = request.get("result", [{}])[0]
    try:
        doc = tractools.repgen.main(
            pmMotor,
            shortCircuit,
            result)
        return [{"status": "ok"}, doc]
    except Exception:
        import traceback
        return [{
            "status": "error",
            "message": "<h3>Incomplete Report data</h3><p>{}</p>".format(
                traceback.format_exc().replace("\\n", "<br/>"))},
            {}]
    return [{"status": "info", "message": "empty document"}, {}]

• Now install in the training environment the additional required Python packages:

(training) ~/intens-training/scim $ pip install -r api-gateway/requirements.txt

• Check if the application is runninhg now: Type make and start the scim-script in the build folder:

(training) ~/intens-training/scim $ cd build
(training) ~/intens-training/scim/build $ make && ./scripts/scim

For debugging and development purposes it could be beneficial to separate the execution of the api-gateway and intens. This can be achieved using the command line arguments:

• -i do not start intens
• -a do not start api-gateway

You will need 2 console windows to execute the Intens app:

(training) ~/intens-training/scim/build $ ./scripts/scim -i
(training) ~/intens-training/scim/build $ ./scripts/scim -a

Each of these processes can be stopped and restarted independently.

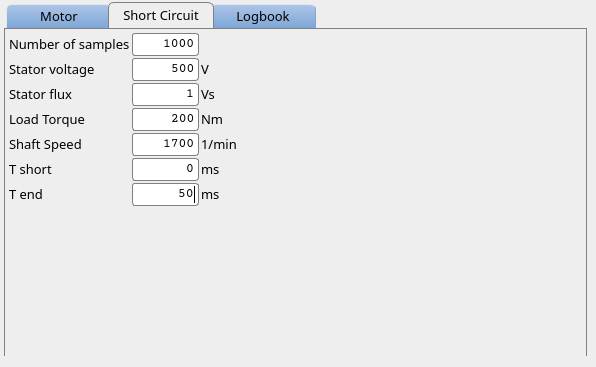

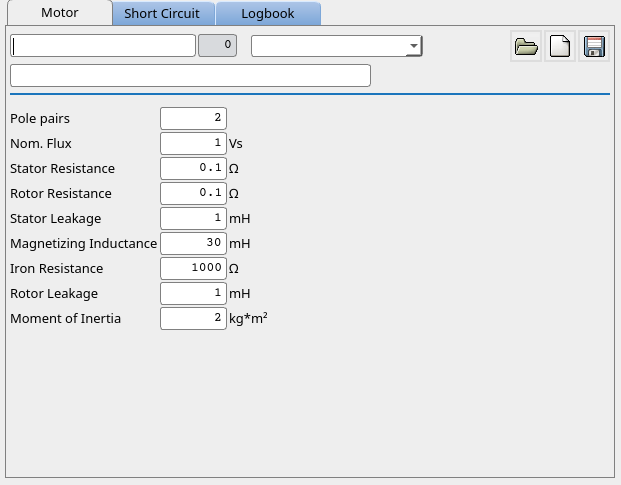

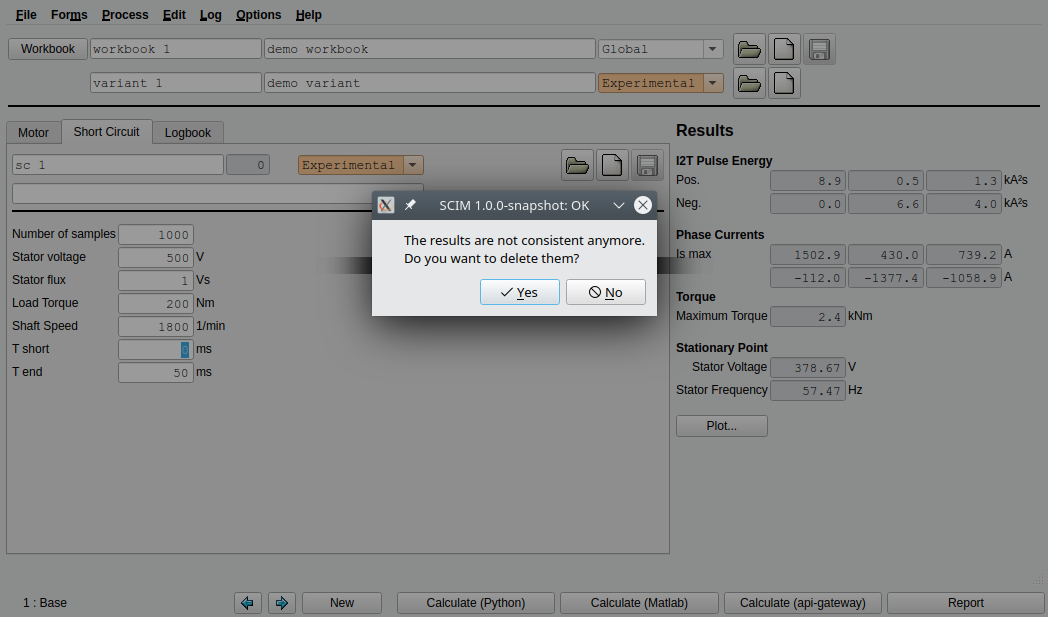

• Enter these values in the text fields of the motor and short circuit tab folders:

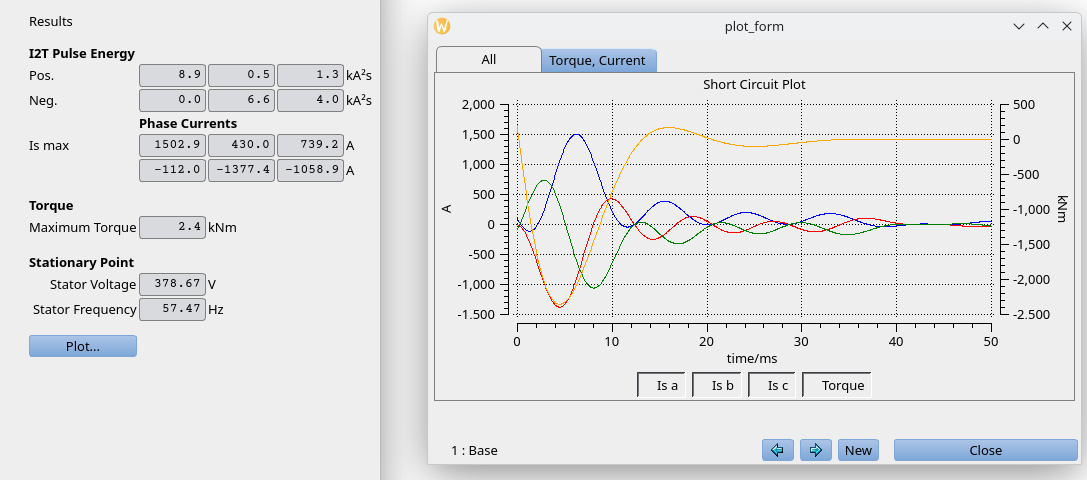

• Invoke the calculation functions by activating one of the buttons Calculate (Python), Calculate (Matlab) or Calculate (api-gateway) All functions should return the same values. (However there is a small variation with the phase currents due to the different numerical integration used by python and matlab)

Engineering is typically a highly iterative process. During the design of a system or component usually a couple of calculations with varying inputs are executed. When a input value is modified, Intens informs the user that the corresponding results will be deleted.

To keep these values for a later comparison a new version (or case) can be created by pressing the New button on the bottom line of the dialog window.

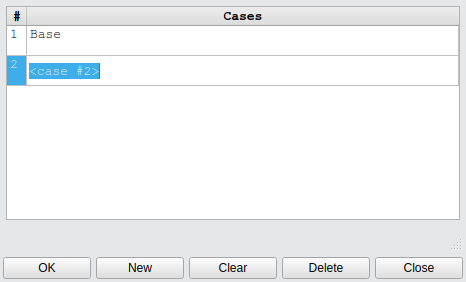

A new dialog window CaseDialog asking for a case name will be shown:

Enter a name for the new case (or accept the default) and press OK. This will create a copy of all values in the current user session. Now a new calculation can be invoked. This procedure can be repeated as often as required. The navigation between these cases is done with the arrow buttons on the bottom of the dialog. More functions can be found in the CaseDialog that is opened via the Case menu under Options.

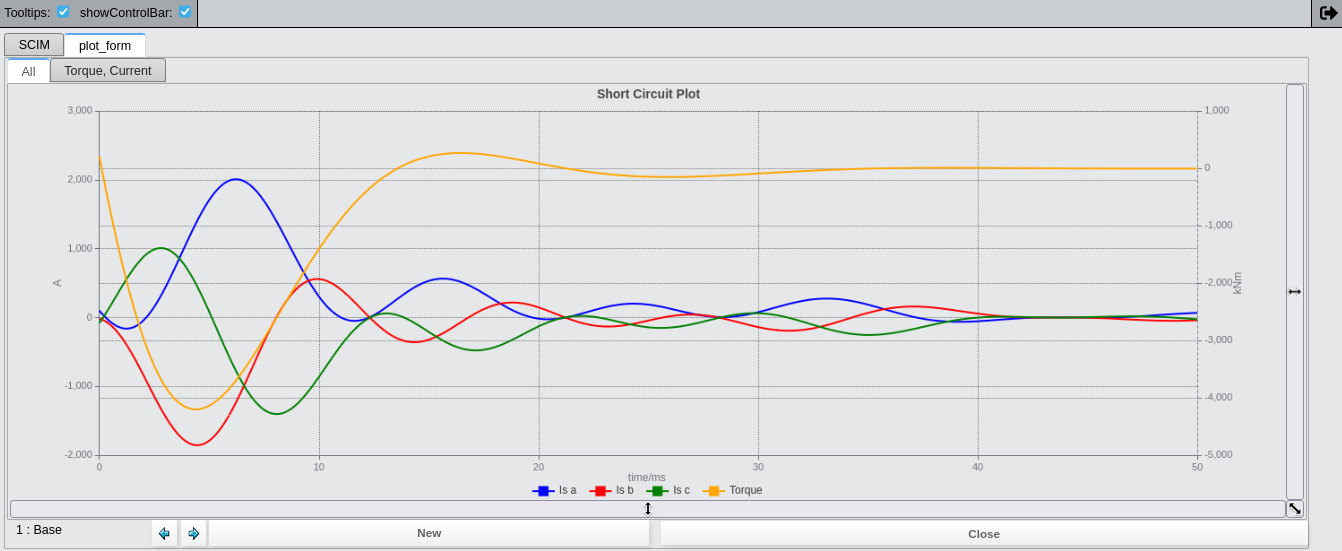

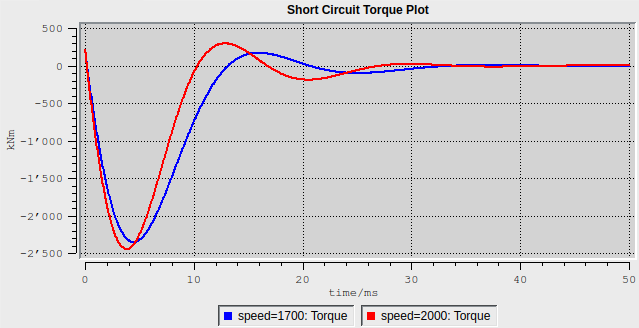

A more advanced comparison feature is included in the plot diagrams. Pressing the right button while the pointer is over a plot area invokes an option menu where one ore more cases can be selected:

In order to store datasets the database must first be initialized. Enter the following command in the console of your build directory:

(training) ~/intens-training/scim/build $ make && make update-db

2025-05-08 10:30:18,128 INFO: LogBook: 200
2025-05-08 10:30:18,161 INFO: Motor: 200
2025-05-08 10:30:18,192 INFO: Variant: 200
2025-05-08 10:30:18,205 INFO: Project: 200
2025-05-08 10:30:18,205 INFO: TOTAL success 4 failed 0
Built target update-db

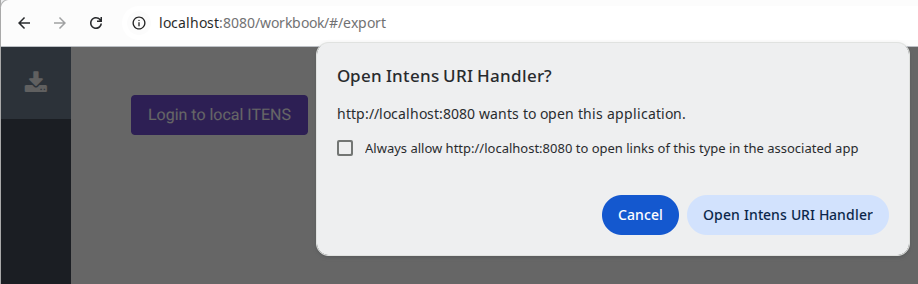

• In the main window enter the workbook and variant description and save the workbook by pressing the disk icon on the right with your mouse pointer:

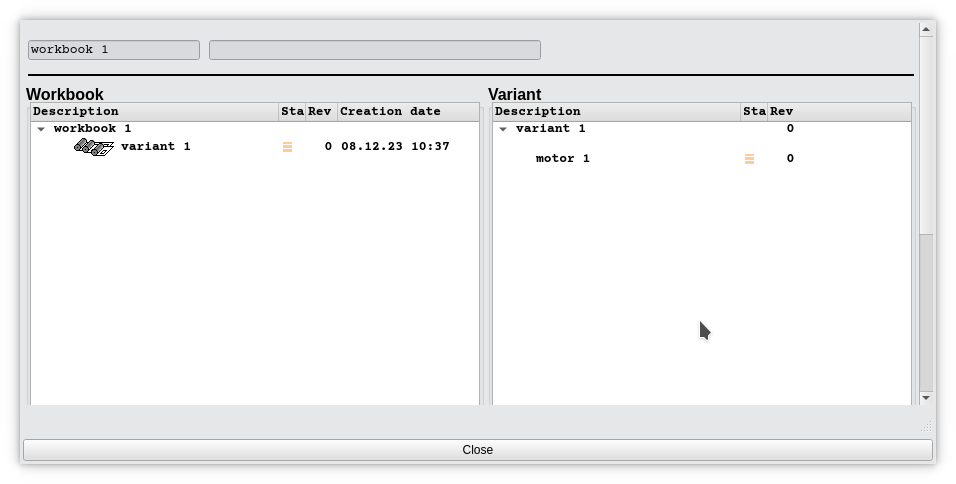

• Activate the button Workbook on the left which will open the workbook overview dialog:

There are 2 trees visible in the overview tab. The right tree shows the data set that is currently active, eg. is used for the calculation. The left tree shows all variants and baselines of the loaded workbook. The active dataset can be replaced by any of these variants by simply dragging and dropping the respective folder from the workbook tree on the left to the active dataset tree on the right.

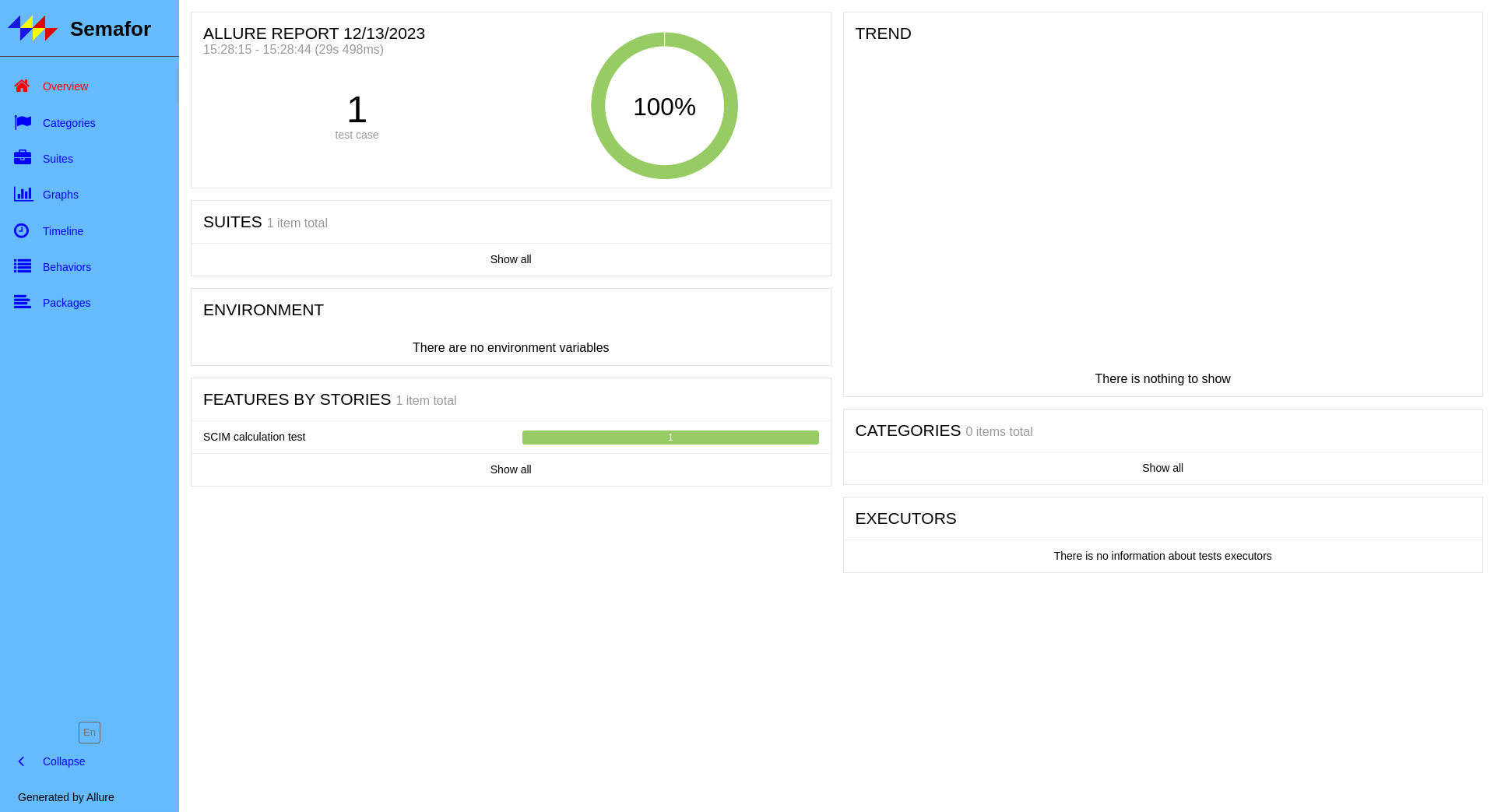

Behavior-driven development (or BDD) is an agile software development technique that encourages collaboration between developers, QA and non-technical or business participants in a software project. behave uses tests written in a natural language style, backed up by python code. (See i.E. Tutorial for more information on behave.)

📁 scim
└── 📁 testing
    ├── 📄 behave.ini                  Behave configuration file
    └── 📁 features
        ├── 📄 environment.py          Code to run before and after certain events
        ├── 📄 scim.feature            Feature File (describes a feature in plain-text)
        └── 📁 steps                  for Python step implementations
            ├── 📄 scim-steps.py       Python step implementations
            └── 📁 intens
                └── 📄 intensZMQ.py    Functions to communicate with Intens using ZeroMQ

When running in a docker runtime environment the user access is based on HTTP/S via a web browser and each INTENS application is packed into a docker container.

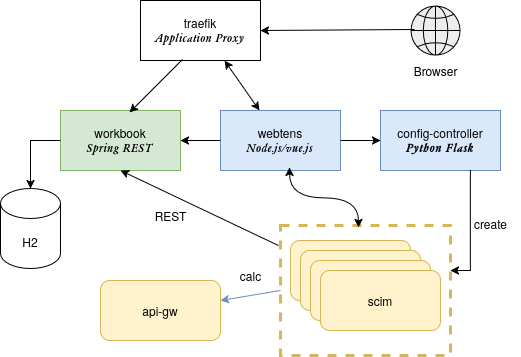

The INTENS docker application system consists of the following services each implemented as docker containers:

traefik

provides access to the webtens, workbook (dashboard) services,

webtens

manages authentication, session handling, browser communication (via HTTP/S, Websockets), view creation,

config-controller

creation of INTENS containers (scim) on a per user basis,

workbook

DB access (users, groups, projects, variants and components) with approval and configuration management,

scim

INTENS application with data pool, process control, ui handling,

api-gateway

calculation programs invocation,

Follow these steps to setup up and to run a INTENS application in docker:

(Prerequisite: The docker software package https://docs.docker.com/desktop is installed on your system.)

1. In the build folder execute make docker-image. (This builds the docker image "hub.semafor.ch/semafor/scim".) Next change to the docker folder in the main project folder and execute the docker compose up command. Make sure no other rest service or other process is running on port 8080.

   (training) ~/intens-training/scim $ cd build
   (training) ~/intens-training/scim/build $ make docker-image
   (training) ~/intens-training/scim/build $ cd ../docker
   (training) ~/intens-training/scim/docker $ docker compose up -d --build


   The console output of docker compose up should show the status "Started" for all services:

   ✔ Container docker-traefik-1 Started 0.2s
✔ Container docker-webtens-1 Started 0.2s
✔ Container docker-config-service-1 Started 0.2s
✔ Container docker-workbook-1 Started 0.2s
✔ Container docker-api-gw-1 Started 0.2s

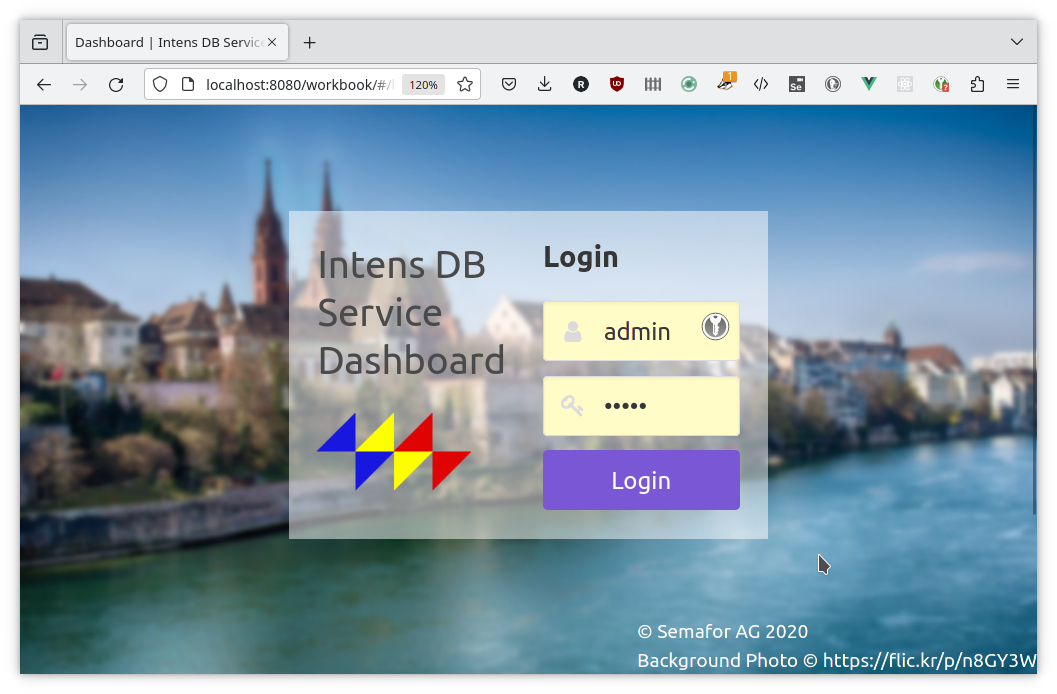

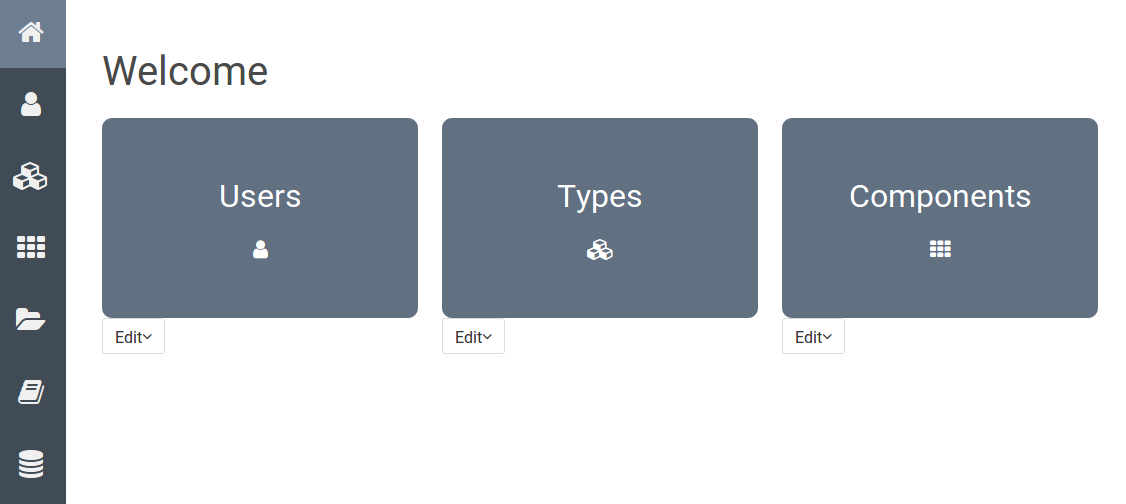

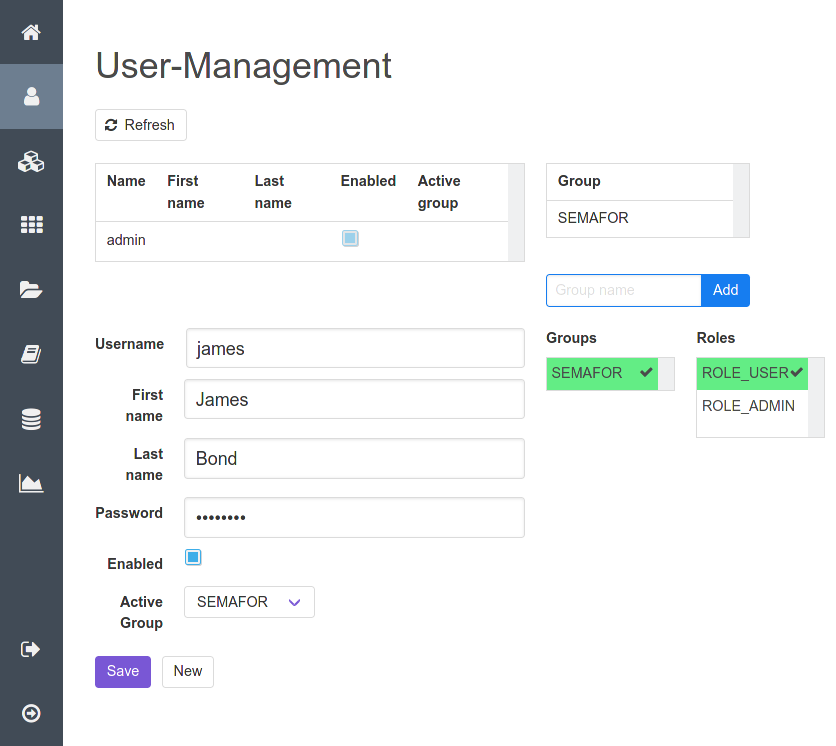

2. Add a new user, using the Workbook dashboard (follow the same steps as described in section 1.3.2)

3. With the new database again we must update the database. Change to the build folder, type make, update the database application:

   (training) ~/intens-training/scim $ cd build
   (training) ~/intens-training/scim/build $ make && make update-db


   2025-05-08 10:30:18,128 INFO: LogBook: 200
2025-05-08 10:30:18,161 INFO: Motor: 200
2025-05-08 10:30:18,192 INFO: Variant: 200
2025-05-08 10:30:18,205 INFO: Project: 200
2025-05-08 10:30:18,205 INFO: TOTAL success 4 failed 0
Built target update-db

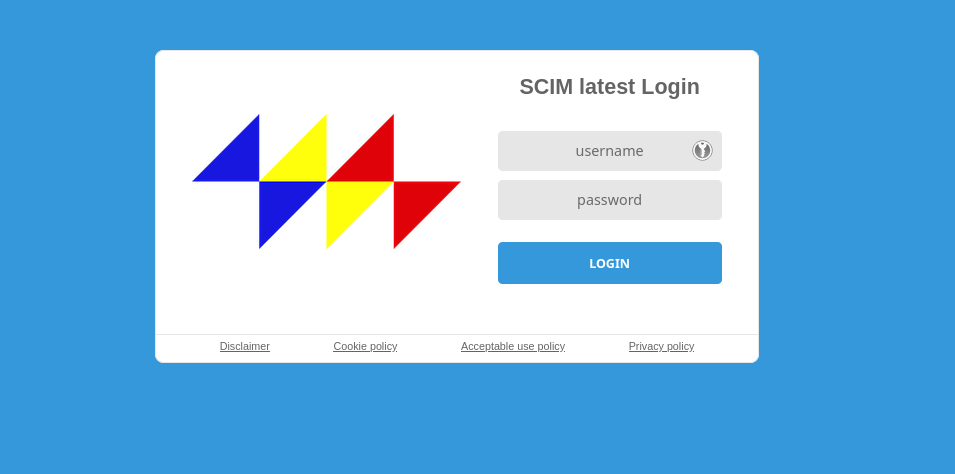

4. Navigate to the start screen of the web interface in our web browser http://localhost:8080



   Figure 21: Login Dialog

5. After Login to the Demo Application:



   Figure 22: SCIM Application Screen after Login

   Plot Screen



   Figure 23: SCIM Plot Screen after Calculation

6. Add custom CSS: To add custom styles or scripts to your webtens application, you can simply add the files into the folder /home/app/server/public folder via a volume mount. After that you have to set the environment variables CUSTOM_STYLES or CUSTOM_SCRIPTS to their path relative of the public folder.

   webtens:
     image: hub.semafor.ch/semafor/webtens-vue:latest
     expose:
       - 8000
     environment:
       - APP_NAME=SCIM latest
       - CONTAINER_TYPE=scim
       - CUSTOM_STYLES=scim/scim.css
       - SESSION_TIMEOUT=900
     volumes:
       - ../qss:/home/app/server/public/scim


   Only singular js files are supported for scripts. For styles you can use a singular css file or an scss file importing multiple.

   Webtens will automatically load those additional styles/scripts on startup.

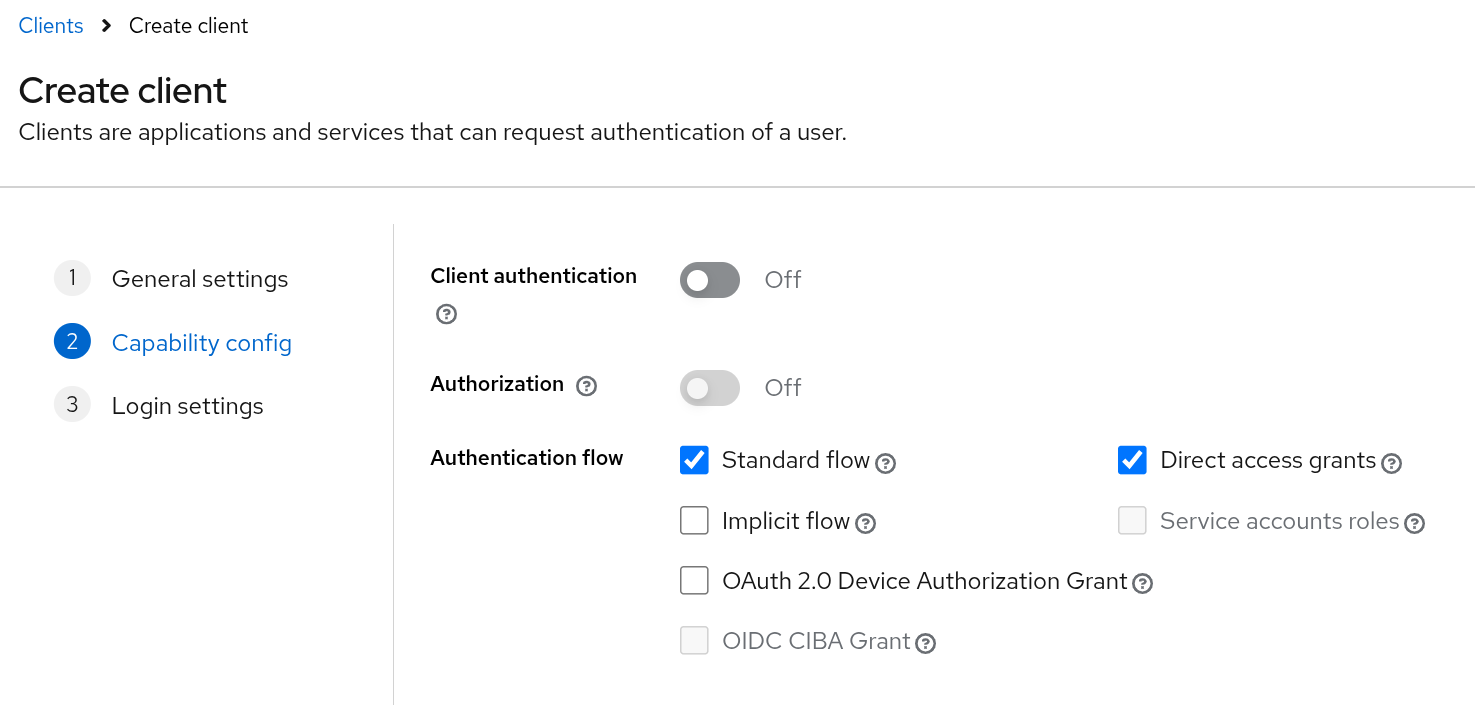

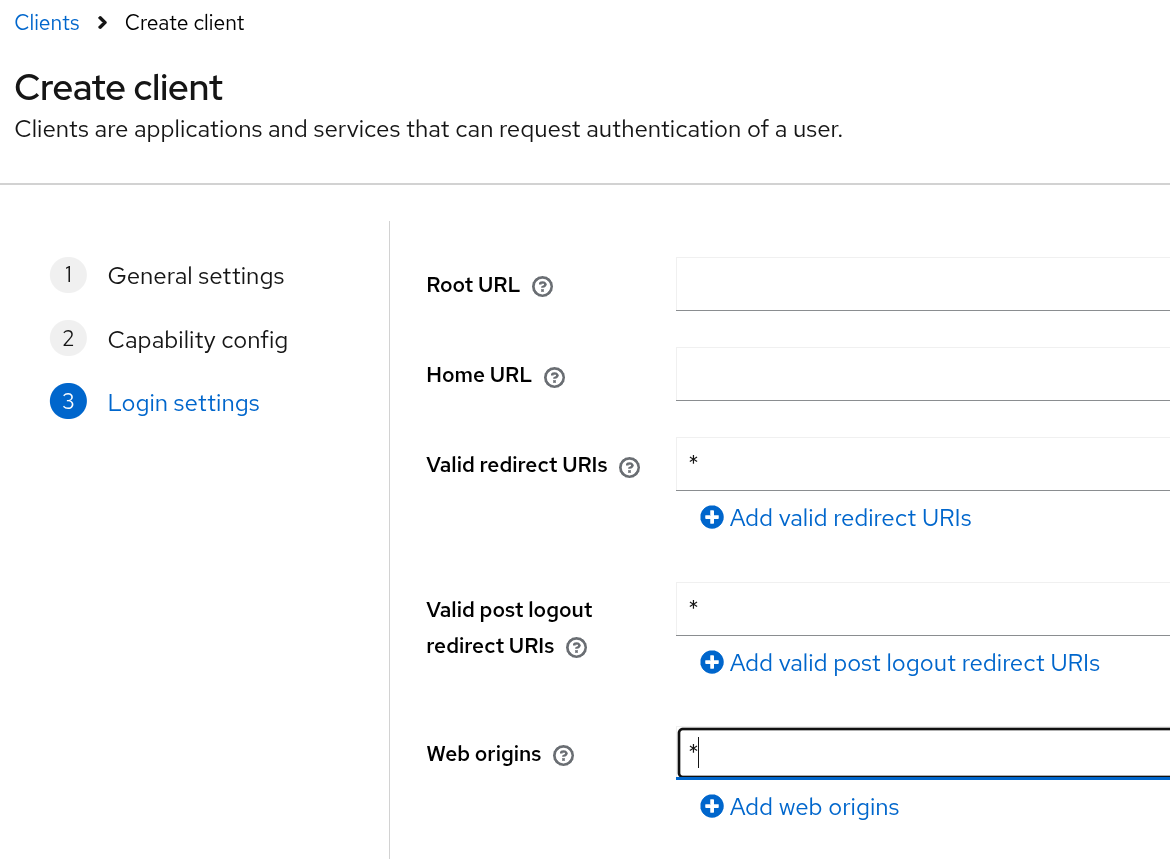

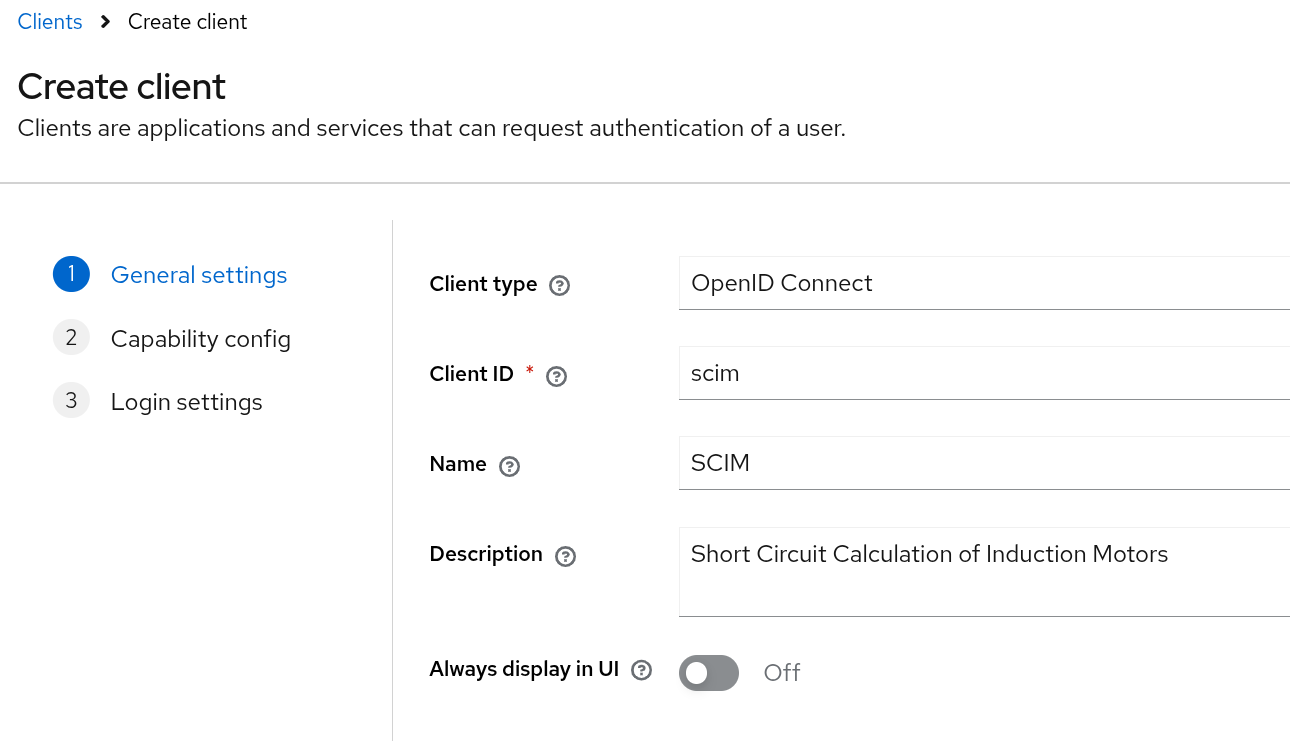

Intens applications use JWT (JSON Web Token) by default for access authorization. The tokens are created by webtens via a workbook login request. As an alternative OAuth2/OpenId Connect can be used in which case an external SSO server must be available. To use this a few environment variables in Webtens must be set:

In addition the following environment variable must be set in the workbook service:

spring.security.oauth2.resourceserver.jwt.jwk-set-uri

https://keycloak.example.com/auth/semafor/protocol/openid-connect/certs

It needs to point to the certificates endpoint of your SSO provider so the workbook can verify the user's tokens.

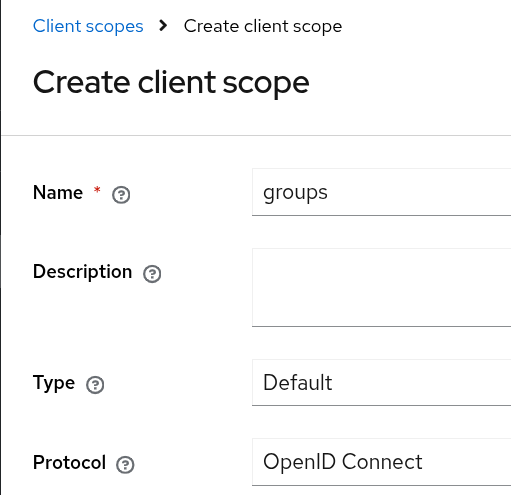

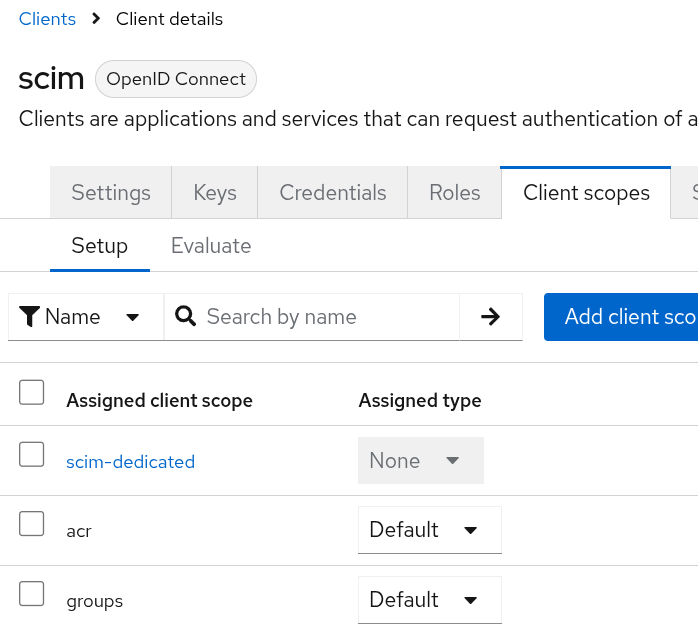

When using OAuth2 the workbook service will use the roles, groups and the active group provided by your SSO server. The specific entries needed in your access token are the following:

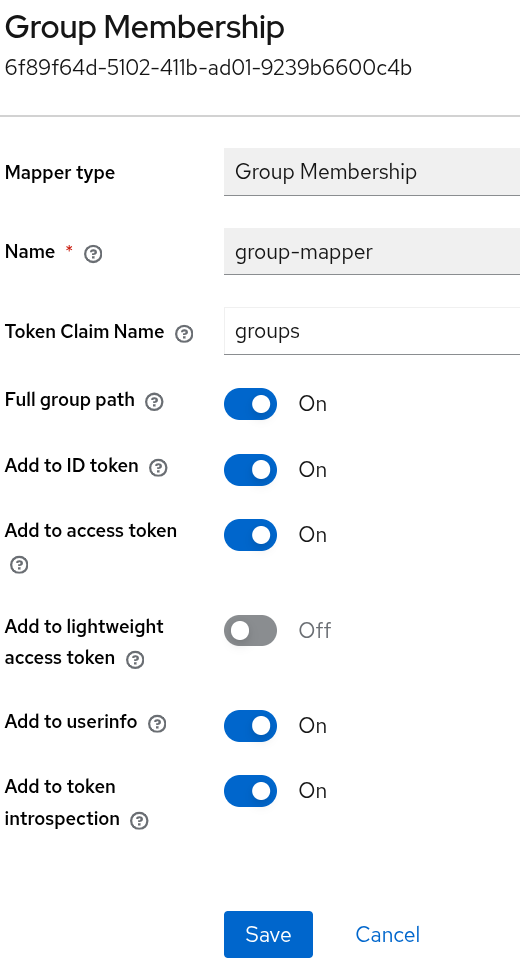

groups

a list of groups, each starting with a "/"

resource_access -> account -> roles

[USER, ADMIN]: USER to let the user access the workbook itself. ADMIN to make them a workbook admin

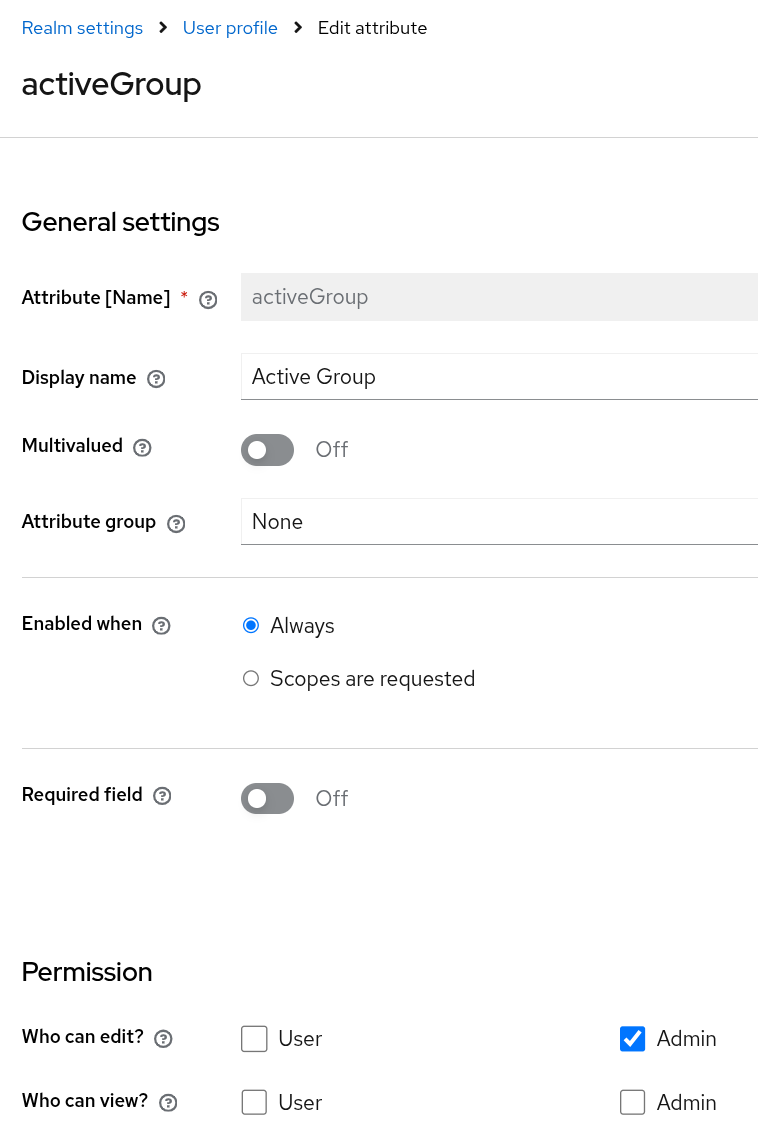

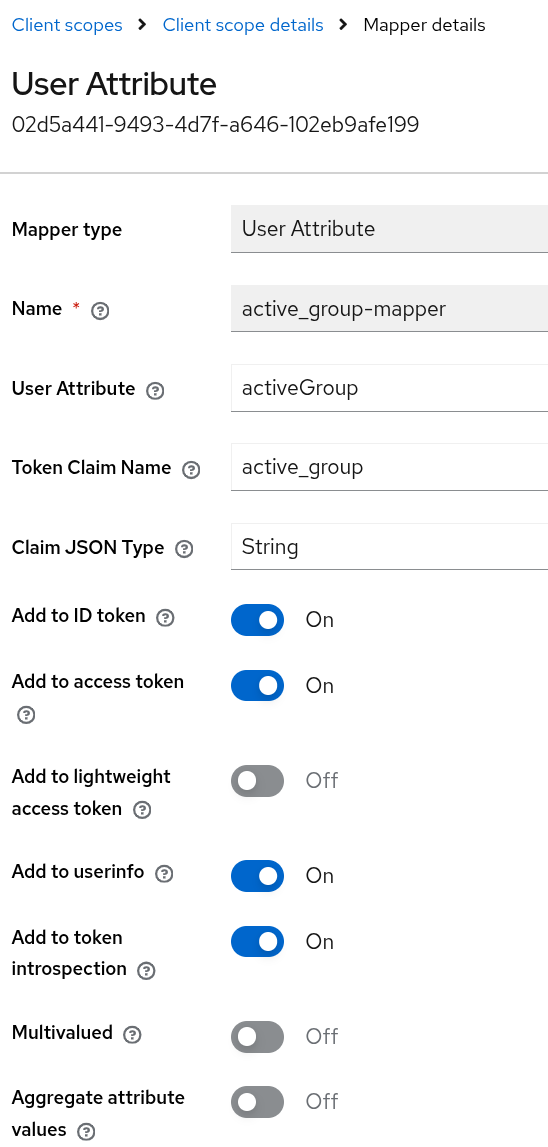

active_group

any from the groups key. Name must match fully

Prerequisites:

• Access to a kubernetes cluster (docker desktop, https://minikube.sigs.k8s.io, https://k3d.io ..)
• The kubectl tool https://kubernetes.io/docs/tasks/tools (already included in docker desktop)
• The helm package manager for kubernetes https://helm.sh
• The Skaffold command line tool for easy kubernetes development https://skaffold.dev/

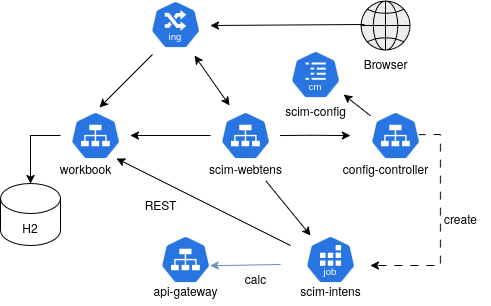

To deploy and develop our application in a kubernetes powered cloud, we use helm and skaffold. Since kubernetes itself is very complex and has a steep learning curve, we provide an easier way to deploy the application and its dependencies via helm charts. A helm chart is a package that gives you an easier to use interface to deploy the app, with the complexities hidden away. To learn more about helm, the helm website linked above has all the documentation you need.

Create the directory where all testing files will be stored by using the following commands:

(training) ~/intens-training $  cd testing
(training) ~/intens-training $  mkdir webtesting
(training) ~/intens-training/testing $  cd webtesting
(training) ~/intens-training/testing/webtesting $ wget https://owncloud.semafor.ch/s/DnE3mx17s2GgrSq/download -O - | tar xzf -
(training) ~/intens-training/testing/webtesting $ cd behave

Now install the Python packages from the requirements.txt and run the Behave test

(training) ~/intens-training/testing/webtesting $ pip install -r requirements.txt
(training) ~/intens-training/testing/webtesting $ behave -f allure_behave.formatter:AllureFormatter -o reports

The test report should open in your web browser. If it does not open automatically, you can see the report visiting the url given in the terminal (i.E. http://127.0.0.1:45043).

The database access is implemented by a REST service which is connected to a SQL or NOSQL database. The data model comprises 3 main types of entities:

Workbook (Project)

a collection of variants that serve a common engineering goal. Each workbook has a unique name, an optional set of properties, an owner and a visibility state (local, global, obsolete).

Variants

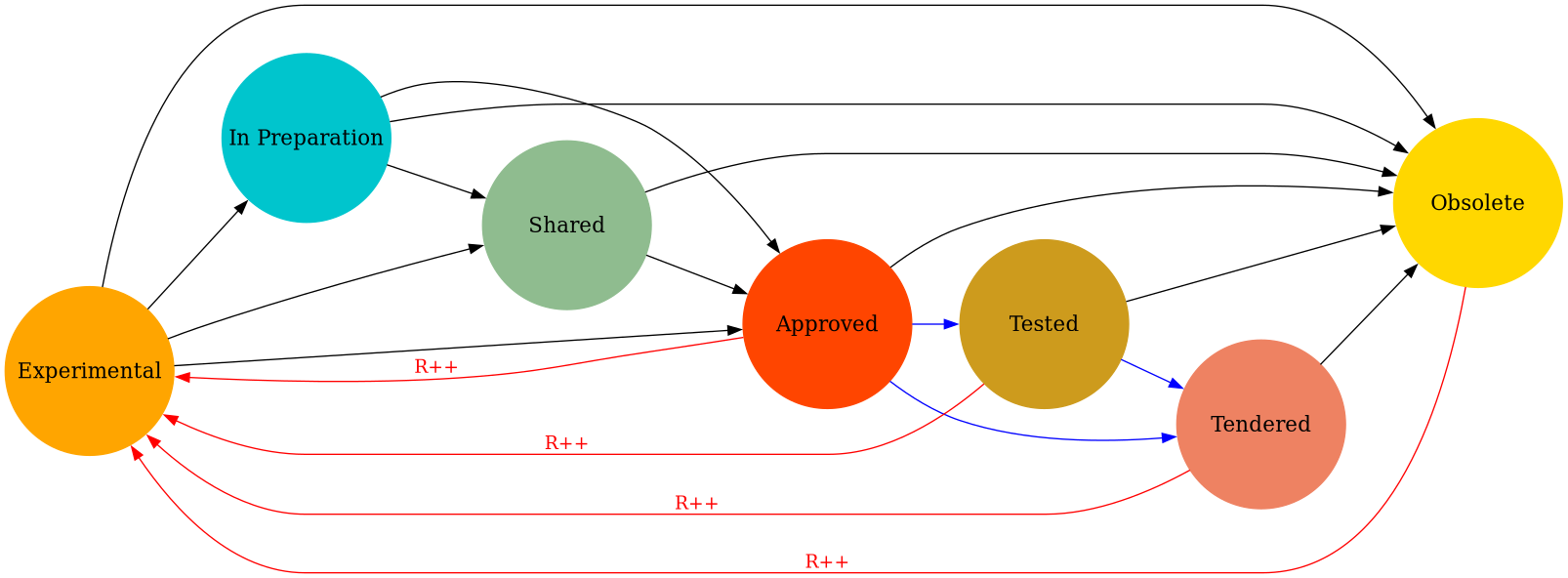

a collection of components used for specific calculation tasks. Each variant has a name which is unique within its workbook, an owner, an approval state and an optional set of properties.

Components

persistent objects each having a type, a name, a revision number, an owner, an approval state and a set of type specific properties. The same component can be attached to several variants. Each component is identified by its type, name and revision. The component types have a unique name and a set of property types which each have a unique name, a physical unit and a data type (STRING, INTEGER, REAL, DATE, CDATA) and 0 (scalar) or more dimensions (array).

Modifications of property values are saved with timestamp, user name and change comment such that the changes are traceable and the version of components and variants can be restored.

This model is known as Entity-Attribute-Value Model (EAV).

The database service is based on Spring Boot using Spring Security, Spring MVC/REST, Data/JPA and Liquibase for the database schema change management.

To prevent interferencies of concurrent modifications an Optimistic Concurrency Control is implemented. If a conflict occurs it will be detected and the save operation will be aborted with an ``Up-to-date Conflict'' message.

The following sections describe the installation and setup of an Intens development environment on Windows. It is not necessary for executing Intens applications.

To improve the readability of the source code and make software maintenance easier at set of guidelines should be followed.

As our basis we've chosen the https://pep8.org (PEP 8 Style Guide for Python Code) with some pragmatic adaptions:

• Use 2 spaces per identation level.
• Use Spaces and not Tabs.
• Keep the line lengths below 80 characters.
• Avoid extraneous whitespace.
• Struct names should use the CapWords convention.
• Names of functions and variables should be lowercase, with words separated by underscores.
• Constants are written in all capital letters with underscores separating words.

Intens applications can be adapted to differented languages and regions without code modifications. This is based on the tool GNU gettext https://www.gnu.org/software/gettext

The following steps create a German translation of SCIM.
