Case Study: Intermodal Delivery Management System

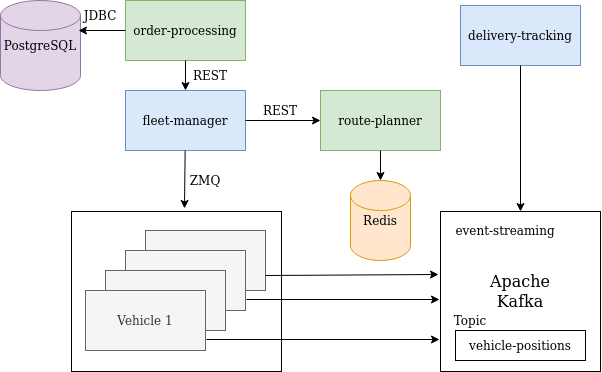

INMODS is a simple application system that demonstrates the current state-of-the-art development practices.

User Story:

Users can enter delivery orders with start and end locations and

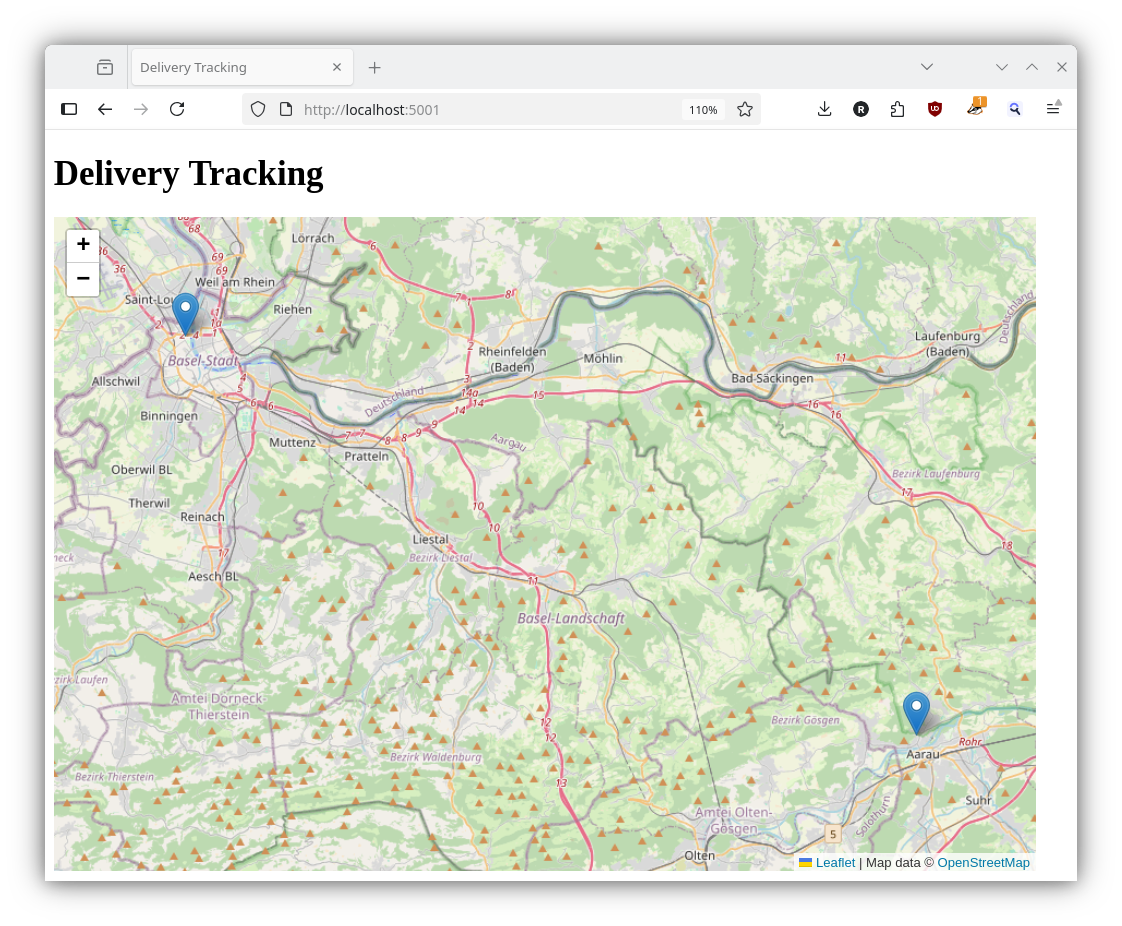

track their states in real-time on a map.

The route planner finds the shortest route between start and end points of deliveries. A route is a collection of links between 2 cities. Each city has a (unique) name and a location described by geo coordinates (latitude, longitude) .

The route-planner is a Java Spring-Boot project with Maven.

1. Go to https://start.spring.io and enter the shown values:

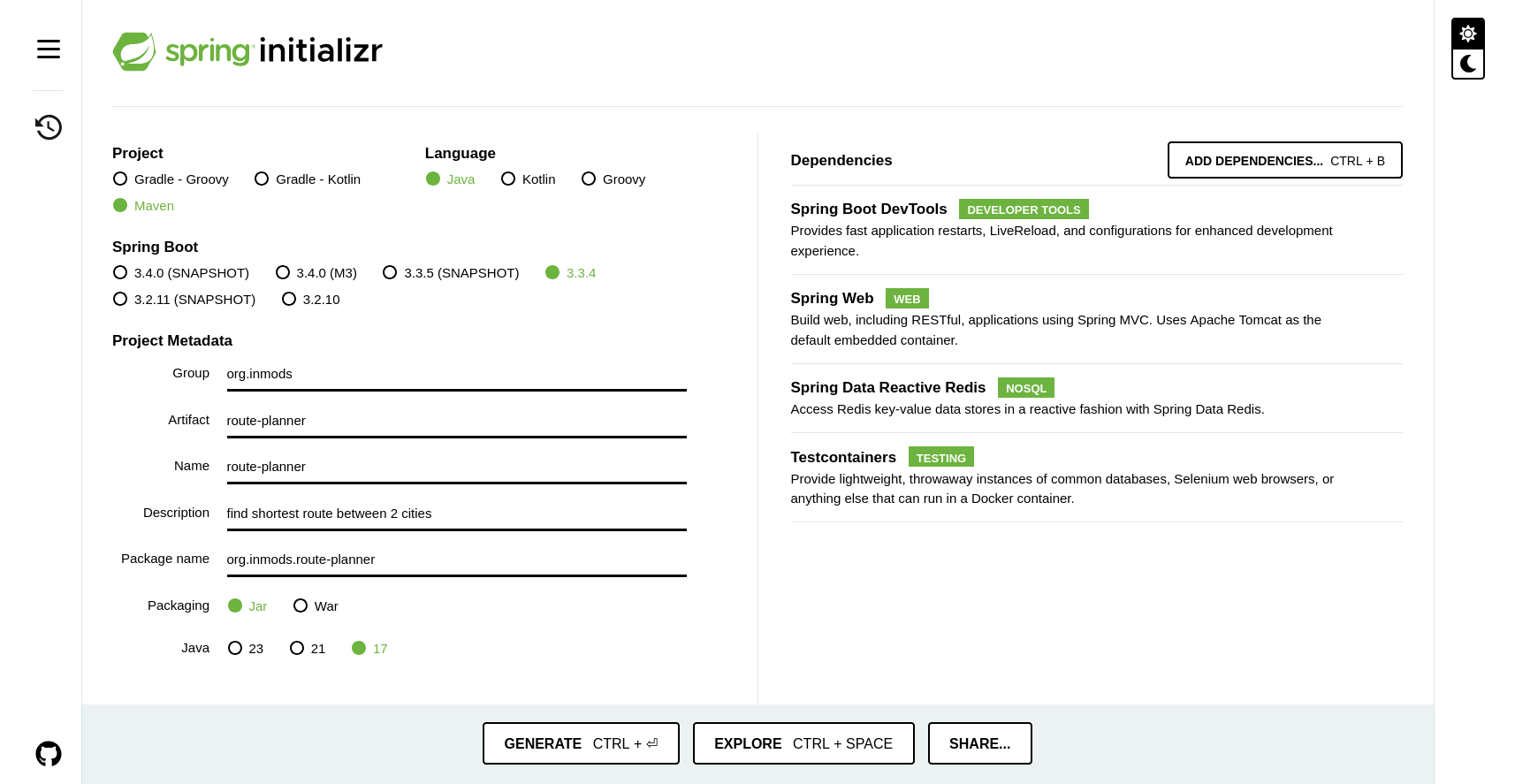

   Figure 2: Spring initializr for route-planner

   with the dependencies: DevTools, Spring Web, Spring Data Redis

2. Activate "GENERATE", download the ZIP-File route-planner.zip und unpack this file into the project directory.

3. Initialize the git repository and commit the created directory.

   git init
   git add route-planner
   git commit -m "initial commit"


4. Open your Java IDE (Intellij, Eclipse, VisualCode, Netbeans) and import route-planner files as a Maven project.
5. Create the package org.inmods.routeplanner.model

6. Create the class City with its getter and setter methods:

   package org.inmods.routeplanner.model;

   import org.springframework.data.annotation.Id;
   import org.springframework.data.geo.Point;
   import org.springframework.data.redis.core.RedisHash;
   import org.springframework.data.redis.core.index.GeoIndexed;
   import org.springframework.data.redis.core.index.Indexed;

   @RedisHash(value = "city")
   public class City {
           @Id
           String id;
           @Indexed
           String name;
           Integer population;
           @GeoIndexed
           Point location;
           String country;
   }


7. Add equal and hash methods:

   public boolean equals(Object obj){
       if(this == obj)
           return true;
       if((obj == null) || (obj.getClass() != this.getClass()))
           return false;
       City c = (City)obj;
       if( this.id != null) {
           return this.id.equals(c.id);
       }
       return this.name.equals(c.name);
   }

   public int hashCode(){
       int hash = 7;
       hash = 31 * hash + id.hashCode();
       return hash;
   }


8. Create the Class Link with its setter and getter methods:

   package org.inmods.routeplanner.model;

   import java.util.List;
   import org.springframework.data.redis.core.RedisHash;

   /**
    * represents a connection between 2 cities
    */
   @RedisHash(value = "link")
   public class Link {
     public enum TransportMode {
       TRAIN, PLANE, BICYCLE, TRUCK, SHIP;
     }

     private String id;
     private String from;
     private String to;
     private Double weight;
     private TransportMode transportMode;
   }


9. Add package org.inmods.routeplanner.repository

10. Create the interface CityRepository (Point, Distance are geo data):

    package org.inmods.routeplanner.repository;
    public interface CityRepository extends CrudRepository<City, String> {
        List<City> findByName(String name);
        List<City> findByLocationNear(Point point, Distance distance);
    }


11. Create the interface LinkRepository:

    package org.inmods.routeplanner.repository;
    public interface LinkRepository extends CrudRepository<Link, String> { }


12. Create the class DatabaseLoader

    package org.inmods.routeplanner;

    import java.io.InputStream;
    import java.util.Scanner;
    import org.inmods.routeplanner.model.City;
    import org.inmods.routeplanner.repository.CityRepository;
    import org.inmods.routeplanner.repository.LinkRepository;
    import org.inmods.routeplanner.model.Link;
    import org.inmods.routeplanner.model.Link.TransportMode;
    import org.slf4j.Logger;
    import org.slf4j.LoggerFactory;
    import org.springframework.beans.factory.annotation.Autowired;
    import org.springframework.beans.factory.annotation.Value;
    import org.springframework.boot.CommandLineRunner;
    import org.springframework.context.annotation.Profile;
    import org.springframework.data.geo.Point;
    import org.springframework.stereotype.Component;

    @Component
    @Profile("!mocktest")
    public class DatabaseLoader implements CommandLineRunner {

      Logger logger = LoggerFactory.getLogger(DatabaseLoader.class);

      @Autowired
      private CityRepository cityRepository;
      @Autowired
      private LinkRepository linkRepository;

      @Value("${routeplanner.cities}")
      String cityfile;
      @Value("${routeplanner.links}")
      String linkfile;

      @Override
      public void run(String... strings) {
        long numCities = cityRepository.count();
        long numLinks = linkRepository.count();
        if (numCities == 0) {
          numCities = loadCities();
          numLinks = loadLinks();
        }
        logger.info("Total {} cities {} links", numCities, numLinks);
      }

      private int loadCities() {
        int nrecs = 0;
        InputStream in = this.getClass().getResourceAsStream(cityfile);
        Scanner sc = new Scanner(in, "UTF-8");
        while (sc.hasNextLine()) {
          String[] recs = sc.nextLine().split("\t");
          City c = new City();
          c.setName(recs[0].strip());
          c.setCountry(recs[1].strip());
          c.setPopulation(Integer.valueOf(recs[2]));
          c.setLocation(new Point(Double.valueOf(recs[4]), Double.valueOf(recs[3])));
          cityRepository.save(c);
          nrecs++;
        }
        return nrecs;
      }

      private int loadLinks() {
        int nrecs = 0;
        InputStream in = this.getClass().getResourceAsStream(linkfile);
        Scanner sc = new Scanner(in, "UTF-8");
        while (sc.hasNextLine()) {
          String[] recs = sc.nextLine().split("\t");
          if (recs.length < 2) {
            logger.warn("illegal record at line {}", nrecs);
          } else {
            try {
              City a = cityRepository.findByName(recs[0].strip()).get(0);
              City b = cityRepository.findByName(recs[1].strip()).get(0);
              Double dist = a.distance(b);
              Link l = new Link(a.getName(), b.getName(), dist, TransportMode.TRAIN);
              linkRepository.save(l);
              nrecs++;
            } catch (IndexOutOfBoundsException e) {
              logger.warn("City not found in {} {}", recs[0], recs[1]);
            }
          }
        }
        return nrecs;
      }

    }


13. add the Constructors to the Link class:

    public Link(){}

    public Link(String from, String to,
        Double dist, TransportMode tmode) {
      this.from = from;
      this.to = to;
      this.weight = dist;
      this.transportMode = tmode;
    }


14. Create the method distance in City class:

    public double distance(City to){
      if( this.location.getY() == to.location.getY() &&
          this.location.getX() == to.location.getX() )
        return 0.0;
      // convert coordinates into radian
      double k = Math.PI/180;
      double a = this.location.getY()*k; // Latitude
      double b = this.location.getX()*k; // Longitude
      double c = to.location.getY()*k;   // Latitude
      double d = to.location.getX()*k;   // Longitude

      double x = Math.sin(a)*Math.sin(c)+
         Math.cos(a)*Math.cos(c)*Math.cos(b-d);
      double radius = 6371.007176; // in km
      if (x > 1) x = 1.0;
      return radius*Math.acos(x);
    }


15. Add the file cities.txt and links.txt to the resources directory.

16. add the lines to the application.properties:

    routeplanner.cities=/cities.txt
    routeplanner.links=/links.txt


17. Start redis: docker run --rm -p 6379:6379 redis:7
18. Start RoutePlannerApplication
19. Add the package org.inmods.routeplanner.service

20. Create the class RouteService

    package org.inmods.routeplanner.service;

    import java.util.ArrayList;
    import java.util.HashMap;
    import java.util.HashSet;
    import java.util.LinkedList;
    import java.util.List;
    import java.util.Map;
    import java.util.Set;
    import java.util.stream.Collectors;
    import java.util.stream.StreamSupport;
    import org.inmods.routeplanner.error.CityNotFoundException;
    import org.inmods.routeplanner.repository.CityRepository;
    import org.inmods.routeplanner.model.City;
    import org.inmods.routeplanner.model.Link;
    import org.inmods.routeplanner.repository.LinkRepository;
    import org.slf4j.Logger;
    import org.slf4j.LoggerFactory;
    import org.springframework.beans.factory.annotation.Autowired;
    import org.springframework.data.geo.Distance;
    import org.springframework.data.geo.Metrics;
    import org.springframework.data.geo.Point;
    import org.springframework.stereotype.Service;

    /**
     * @author Ronald Tanner
     */
    @Service
    public class RouteService {

      Logger logger = LoggerFactory.getLogger((RouteService.class));
      @Autowired
      CityRepository cityRepository;
      @Autowired
      LinkRepository linkRepository;

      /**
       * find all links completely included within an array of cities
       *
       * @param cities
       * @return routes
       */
      List<Link> findAllLinks(List<City> cities) {
        return StreamSupport.stream(linkRepository.findAll().spliterator(), false).filter(
            l -> l.isIncludedIn(cities)).collect(Collectors.toList());
      }

      /**
       * find shortest path from source to target city See {@linktourl http://en.wikipedia.org/wiki/Dijkstra%27s_algorithm}
       *
       * @return itinerary
       */
      public List<Link> findShortestPath(String fromName, String toName) {
        List<City> cities = findCitiesBetween(fromName.strip(), toName.strip());
        List<Link> links = findAllLinks(cities);
        logger.info("have {} cities, {} links between {} and {}",
            cities.size(), links.size(), fromName, toName);
        if (links == null || links.size() == 0) {
          return new ArrayList<Link>();
        }
        City source = findCity(fromName);
        City target = findCity(toName);
        List<City> Q = new ArrayList<City>();
        Map<City, Double> dist = new HashMap<City, Double>();
        Map<City, City> previous = new HashMap<City, City>();
        for (City v : cities) {
          dist.put(v, Double.MAX_VALUE);
          previous.put(v, null);
          Q.add(v);
        }
        dist.put(source, 0.);
        while (!Q.isEmpty()) {
          City u = null;
          int i = 0;
          int iu = 0;
          double minDist = Double.MAX_VALUE;
          // find city u with shortest dist
          for (City c : Q) {
            if (dist.get(c) < minDist) {
              iu = i;
              u = c;
              minDist = dist.get(c);
            }
            i++;
          }
          if (u != null) {
            Q.remove(iu);
            for (City n : findNeighbors(links, u)) {
              double alt = dist.get(u) + getDist(links, u, n);
              if (!dist.containsKey(n) || alt < dist.get(n)) {
                dist.put(n, alt);
                previous.put(n, u);
              }
            }
          } else {
            break;
          }
        }
        LinkedList<City> citiesOnPath = new LinkedList<City>();
        City u = target;
        while (previous.get(u) != null) {
          citiesOnPath.addFirst(u);
          u = previous.get(u);
        }
        citiesOnPath.addFirst(source);
        // create path from source to target
        City from = null;
        City to = null;
        List<Link> itinerary = new ArrayList<Link>();
        for (City c : citiesOnPath) {
          from = to;
          to = c;
          if (from != null) {
            itinerary.add(findRoute(from, to, links));
          }
        }
        // set link id:
        int i = 0;
        for (Link l : itinerary) {
          l.setId(Integer.toString(i));
          i++;
        }
        return itinerary;
      }

      private Double getDist(List<Link> links, City a, City b) {
        for (Link r : links) {
          if ((a.getName().equals(r.getFrom()) && b.getName().equals(r.getTo()))
              || (b.getName().equals(r.getFrom()) && a.getName().equals(r.getTo()))) {
            return r.getWeight();
          }
        }
        return Double.MAX_VALUE;
      }

      private Link findRoute(City from, City to, List<Link> links) {
        for (Link r : links) {
          if ((from.getName().equals(r.getFrom()) && to.getName().equals(r.getTo())) ||
              (to.getName().equals(r.getFrom()) && from.getName().equals(r.getTo()))) {
            return new Link(from.getName(), to.getName(), r.getWeight(), r.getTransportMode());
          }
        }
        return null;
      }

      private List<City> findNeighbors(List<Link> links, City c) {
        List<City> neighbors = new ArrayList<City>();
        for (Link r : links) {
          if (c.getName().equals(r.getFrom())) {
            neighbors.add(findCity(r.getTo()));
          } else if (c.getName().equals(r.getTo())) {
            neighbors.add(findCity(r.getFrom()));
          }
        }
        return neighbors;
      }

      /**
       * find city by name
       *
       * @param name of city
       * @return
       */
      public City findCity(String name) {
        try {
          return cityRepository.findByName(name).get(0);
        }catch(IndexOutOfBoundsException ex){
          throw new CityNotFoundException(name);
        }
      }

      /**
       * find all cities located within the distance of 2 cities
       *
       * @param fromName name of starting city
       * @param toName   name of destination city
       * @return array of cities between from city and to city
       */
      List<City> findCitiesBetween(String fromName, String toName) {
        if (fromName == null || toName == null) {
          return new ArrayList<City>();
        }
        City from = findCity(fromName);
        City to = findCity(toName);
        Distance dist = new Distance(from.distance(to), Metrics.KILOMETERS);
        Point center = new Point((to.getLocation().getX() + from.getLocation().getX()) / 2,
            (to.getLocation().getY() + from.getLocation().getY()) / 2);
        return cityRepository.findByLocationNear(center, dist);
      }

      /**
       * find linked cities of a country
       *
       * @param country
       * @return array of linked cities in country
       */
      public Iterable<String> findCities(String country) {
        Set<String> cities = new HashSet<String>();
        for (Link l : linkRepository.findAll()) {
          for (City c : List.of(findCity(l.getFrom()), findCity(l.getTo()))) {
            if (c.getCountry().equals(country)) {
              cities.add(c.getName());
            }
          }
        }
        return cities;
      }

      /**
       * find all cities of country
       * @param country
       * @return cities
       */
      public Iterable<City> findAllCities(String country){
        return StreamSupport.stream(cityRepository.findAll().spliterator(), true)
            .filter(c -> country.equals(c.getCountry())).collect(Collectors.toList());
      }

      /**
       * find all countries with linked cities
       *
       * @return array of names of all included country
       */
      public Iterable<String> findCountries() {
        Set<String> countries = new HashSet<String>();
        for (Link l : linkRepository.findAll()) {
          for (City c : List.of(findCity(l.getFrom()), findCity(l.getTo()))) {
            countries.add(c.getCountry());
          }
        }
        return countries;
      }
    }


21. add the method isIncludedIn to the class Link:

    /**
      * check if both ends of this link are included in the array of cities
      *
      * @param cities
      * @return true if this link is included in cities
      */
    public boolean isIncludedIn(List<City> cities) {
      for (City c : cities) {
        if (c.getName().equals(from) || c.getName().equals(to)) {
          return true;
        }
      }
      return false;
    }


22. create the package error and the class CityNotFoundException with following content:

    package org.inmods.routeplanner.error;

    import org.springframework.http.HttpStatus;
    import org.springframework.web.bind.annotation.ResponseStatus;

    @ResponseStatus(value= HttpStatus.NOT_FOUND, reason="No such City")
    public class CityNotFoundException extends RuntimeException{
        public CityNotFoundException(String name){
        super("City \"" + name + "\"");
      }
    }


23. Add package org.inmods.routeplanner.controller

24. Create class RouteController

    package org.inmods.routeplanner.controller;
    @RestController
    public class RouteController {

      @Autowired
      RouteService routeService;

      @GetMapping("/route/{from}/{to}")
      public List<Link> findShortestRoute(@PathVariable String from, @PathVariable String to){
        return routeService.findShortestPath(from, to);
      }

      @GetMapping("/city/{name}")
      public City findCity(@PathVariable String name){
        return routeService.findCity(name);
      }

      @GetMapping("/cities/")
      public Iterable<String> getCities(@PathVariable String country){
        return routeService.findCities(country);
      }

      @GetMapping("/countries")
      public Iterable<String> getCountries(){
        return routeService.findCountries();
      }
    }


The Fleet Manager allocates vehicles and assigns delivery jobs. This is a python project with flask.

1. create the module directories in the project directory

   mkdir  -p fleet-manager/{etc,tests}


2. Add the file requirements.txt with following content to the fleet-manager directory

   grpcio
   grpcio-tools
   pyproj
   pyzmq
   pyaml
   kafka-python


3. Create a new python virtual environment inmods-venv, activate it and install the requirements:

   python -m venv inmods-venv
   source inmods-venv/bin/activate
   pip install -r fleet-manager/requirements.txt


4. create the config file config.yaml with following content in the directory fleet-manager/etc:

   route_planner:
     host: 'route-planner'
     port: 8080
   event_streamer:
     host: 'event-streamer'
     port: 9092
   vehicles:
     - city: Basel
       speed: 20
     - city: Aarau
       speed: 16


5. Add the file manager.py to the directory fleet-manager:

   import logging
   import pyproj   #  generic coordinate transformation of geospatial coordinates
   from vehicle import Vehicle
   import time
   import zmq
   import uuid
   import threading
   from urllib.error import HTTPError, URLError

   geod = pyproj.Geod(ellps='WGS84')
   event_url = "inproc://events"
   context = zmq.Context().instance()


   def get_waypts(a, b):
       """return km spaced list of (lon/lat) pairs between a and b
       Args:
         a: start location
         b: end location"""
       dist = geod.inv(*a, *b)[-1]
       return [a] + geod.npts(*a, *b, 1+int(dist/1000))


   class FleetManager(object):

       def __init__(self, route_planner, kafka_host={}):
           self.route_planner = route_planner
           self.event_receiver = context.socket(zmq.PULL)
           self.thread = 0
           self.vehicles = {}
           self.kafka_host = kafka_host

       def add_vehicle(self, speed, city):
           loc = 0
           for i in range(5):
               try:
                   loc = self.route_planner.get_locations([city])[0]
                   break
               except (HTTPError, URLError) as ex:
                   logging.warning("%s", ex)
               time.sleep(1)
           if loc == 0:
               return 0
           v = Vehicle(str(uuid.uuid4())[:8],
                       speed,
                       loc,
                       event_url, self.kafka_host)
           self.vehicles[v.id] = dict(vehicle=v, city=city)
           return v.id

       def set_job(self, fromcity, tocity):
           """assigns delivery job to vehicle closest to fromcity"""
           cand = []
           for k in self.vehicles:
               if not self.vehicles[k]['vehicle'].is_running:
                   if self.vehicles[k]['city'] == fromcity:
                       cand = [(self.vehicles[k],
                                dict(itinerary=[], total=0))]
                       break
                   pickup = self.route_planner.get_route(
                       self.vehicles[k]['city'], fromcity)
                   if pickup:
                       cand.append((self.vehicles[k], pickup))

           try:
               v, pickup = sorted(cand, key=lambda k: k[1]['total'])[0]
               r = self.route_planner.get_route(fromcity, tocity)
               ity = self.route_planner.get_locations(pickup['itinerary'] + r['itinerary'])
               logging.info("  itinerary %s", ity)
               wp = [x for y in zip(ity, ity[1:])
                     for x in get_waypts(y[0], y[1])]

               v['vehicle'].start(wp + [ity[-1]])

               v['city']=tocity
               return dict(vehicle=v['vehicle'].id,
                           dist=r['total'], pickup=pickup['total'])
           except Exception:
               logging.exception("no route found")
           return {}

       def start(self):
           self.event_receiver.bind(event_url)
           self.thread = threading.Thread(target=self.handle_events,
                                          daemon=True)
           self.thread.start()

       def stop(self):
           """stop all running vehicles"""
           for k in self.vehicles.keys():
               self.vehicles[k]['vehicle'].stop()
           self.event_receiver.close()

       def handle_events(self):
           while self.thread:
               msg = self.event_receiver.recv()
               logging.info(msg)
           # clean up
           self.stop()

       def ready(self):
           return "Yes"

       def join(self):
           try:
               self.thread.join()
           except KeyboardInterrupt:
               logging.info("Terminate")
           self.thread.join()
           self.thread = 0


6. Add the file vehicle.py to the directory fleet-manager/manager

   import time
   import logging
   import threading
   import json
   import zmq
   import kafka

   context = zmq.Context().instance()

   class Vehicle(object):

       def __init__(self, id, speed, location, sink_url, event_streamer={}):
           self.id = id
           self.location = location
           self.speed = speed
           self.departure = 0
           self.scale_factor = 25
           self.sink_url = sink_url
           self.sender = context.socket(zmq.PUSH)
           self.sender.connect(self.sink_url)
           self.is_running = False
           self.topic = False
           if event_streamer:
               host = event_streamer.get('host') or 'localhost'
               port = event_streamer.get('port') or 9092
               servers = f'{host}:{port}'
               for i in range(5):
                   try:
                       self.producer = kafka.KafkaProducer(
                           bootstrap_servers=servers,
                           value_serializer=lambda v: json.dumps(v).encode())
                       self.topic = 'vehicle-positions'
                       logging.info('connected to bootstrap_servers=%s', servers)
                       self._publish_location()
                       break
                   except kafka.errors.NoBrokersAvailable:
                       pass
                   time.sleep(1)

           if not self.topic:
               logging.warning("no event streaming %s", event_streamer)

       def start(self, itinerary):
           """set itinerary (list of ordered waypoints) and start voyage"""
           self.thread = threading.Thread(target=self.run, args=(itinerary,),
                                          daemon=True)
           self.is_running = True
           self.thread.start()

       def stop(self):
           self.is_running = False
           self.sender.close()

       def _publish_location(self):
           msg = dict(location=self.location,
                      id=self.id)
           logging.info("topic %s msg %s", self.topic, msg)
           if self.topic:
               self.producer.send(self.topic, msg)
           self.sender.send_json(msg)

       def run(self, itinerary):
           """calculates distance and moves to new position
           returns if end of itinerary is reached
           """
           s = 0
           self.departure = time.time()
           time_step = 1000/self.speed/self.scale_factor
           while self.is_running:
               try:
                   dt = time.time() - self.departure
                   s = self.speed * dt * self.scale_factor
                   self.location = itinerary[int(round(s/1000))]
                   self._publish_location()
                   time.sleep(time_step)
               except IndexError:
                   self.is_running = False

           logging.info("Vehicle {0} stopped: pos {1} dist {2:5.1f}".format(
                       self.id, self.location, s/1000))
           self.departure = 0
           self.sender.send_string("{}".format(self.id))

       def join(self):
           self.thread.join()


7. Add the file routeplanner.py to the directory fleet-manager:

   import logging
   import urllib.parse
   import urllib.request
   import json

   class RoutePlanner(object):
       def __init__(self, host, port):
           self.url = 'http://{}:{}'.format(host, port)
           logging.info("routeplanner %s", self.url)

       def get_route(self, fromcity, tocity):
           """returns itinerary and total distance for route fromcity to tocity"""
           with urllib.request.urlopen(
                   self.url + urllib.parse.quote(f'/route/{fromcity}/{tocity}')) as resp:
               if resp.getcode() == 200:
                   r = json.loads(resp.read().decode())
                   try:
                       return dict(itinerary=[i['from'] for i in r] +[r[-1]['to']],
                                   total=sum([l['weight'] for l in r]))
                   except:
                       pass
           return {}  # no route found

       def get_locations(self, itinerary):
           """returns list of (lon,lat) pairs of cities in itinerary"""
           loc = []
           for c in itinerary:
               with urllib.request.urlopen(
                       self.url+urllib.parse.quote(f'/city/{c}')) as resp:
                   if resp.getcode() == 200:
                       r = json.loads(resp.read().decode())
                       loc.append((r['location']['x'], r['location']['y']))
                   else:
                       logging.warning(resp)
           return loc

       def get_cities(self):
           """returns a list of countries and cities"""
           d = {}
           with urllib.request.urlopen(self.url+'/countries') as resp:
               if resp.getcode() == 200:
                   for c in json.loads(resp.read().decode()):
                       country = urllib.parse.quote(c)
                       with urllib.request.urlopen(
                           self.url+urllib.parse.quote(
                               f'/cities/{country}')) as resp:
                           if resp.getcode() == 200:
                               d[c] = json.loads(resp.read().decode())
           return d


8. Add the file delivery_job.proto to the directory fleet-manager:

   syntax = "proto3";

   import "google/protobuf/empty.proto";
   package inmods;

   service DeliveryJob {
     rpc FindCities(google.protobuf.Empty) returns (stream City) {}
     rpc Create(DeliveryOrder) returns (Confirmation) {}
   }

   message City {
     string name = 1;
     string country = 2;
   }

   message DeliveryOrder {
     string fromCity = 1;
     string toCity = 2;
   }

   message Confirmation {
     string vehicle = 1;
     double dist = 2;
     double pickup = 3;
   }


9. Add the file Makefile to the directory fleet-manager:

   GENSRCS=delivery_job_pb2.py delivery_job_pb2.pyi delivery_job_pb2_grpc.py
   $(GENSRCS): delivery_job.proto
        python -m grpc_tools.protoc -I. --python_out=. --pyi_out=. \
          --grpc_python_out=. $<

   clean:
        $(RM) $(GENSRCS)


10. Generate the gRPC code:

    make


11. Add the file server.py to the directory fleet-manager:

    import os
    import json
    import yaml
    import logging

    from pathlib import Path
    from manager import FleetManager
    from routeplanner import RoutePlanner

    import grpc
    from concurrent import futures

    import delivery_job_pb2
    import delivery_job_pb2_grpc
    from delivery_job_pb2_grpc import DeliveryJobStub as stub
    from delivery_job_pb2_grpc import DeliveryJobServicer


    class DeliveryJobServicer(delivery_job_pb2_grpc.DeliveryJobServicer):
        def __init__(self, config):
            route_planner = config.get('route_planner',
                                       {'host': 'localhost', 'port': 8080})
            kafka_host = config.get('event_streamer', {})

            self.routePlanner = RoutePlanner(route_planner['host'], route_planner['port'])
            self.fleetManager = FleetManager(self.routePlanner,
                                             kafka_host)

            for v in config['vehicles']:
                id = self.fleetManager.add_vehicle(v['speed'], v['city'])
                if id:
                    logging.info('Vehicle %s added at %s', id, v['city'])
            if not self.fleetManager.vehicles:
                logging.warning('No vehicles available')
            self.fleetManager.start()

        def FindCities(self, request, context):
            countries = self.routePlanner.get_cities()
            for country in countries:
                for cityname in countries[country]:
                    city = delivery_job_pb2.City()
                    city.name = cityname
                    city.country = country
                    yield city

        def Create(self, request, context):
            try:
                job = self.fleetManager.set_job(
                    request.fromCity, request.toCity)
                if job:
                    confirmation = delivery_job_pb2.Confirmation()
                    confirmation.vehicle = job['vehicle'].encode()
                    confirmation.dist = job['dist']
                    confirmation.pickup = job['pickup']
                    return confirmation
            except:
                logging.exception("no route found")
            return "No route found", 400


    def serve(config, port=5000):
        server = grpc.server(futures.ThreadPoolExecutor(max_workers=10))
        delivery_job_pb2_grpc.add_DeliveryJobServicer_to_server(
            DeliveryJobServicer(config), server)
        server.add_insecure_port(f'[::]:{port}')
        logging.info(f"Server listening on port {port}...")
        server.start()
        server.wait_for_termination()


    if __name__ == '__main__':
        import os
        import pathlib
        import pyaml

        test_config = None
        # default location of config file. config-localhost.yaml is used if the environment variable isn’t set
        if test_config is None:
            config_file = Path(os.environ.get('CONFIG_FILE', 'config-localhost.yaml'))
            # verify file exists before attempting to read and extend the configuration
            if config_file.is_file():
                config = yaml.load(config_file.read_text(), Loader=yaml.FullLoader)
            else:
                logging.warning("config_file %s not found", config_file)
        else:
            config=test_config
        logging.basicConfig(level=logging.INFO,
                            format='%(asctime)s %(message)s')
        serve(config)


12. create the file config-localhost.yaml with following content in the directory fleet-manager:

    route_planner:
      host: 'localhost'
      port: 8080
    vehicles:
      - city: Basel
        speed: 20
      - city: Aarau
        speed: 16


13. Start fleet-manager

    python ./server.py

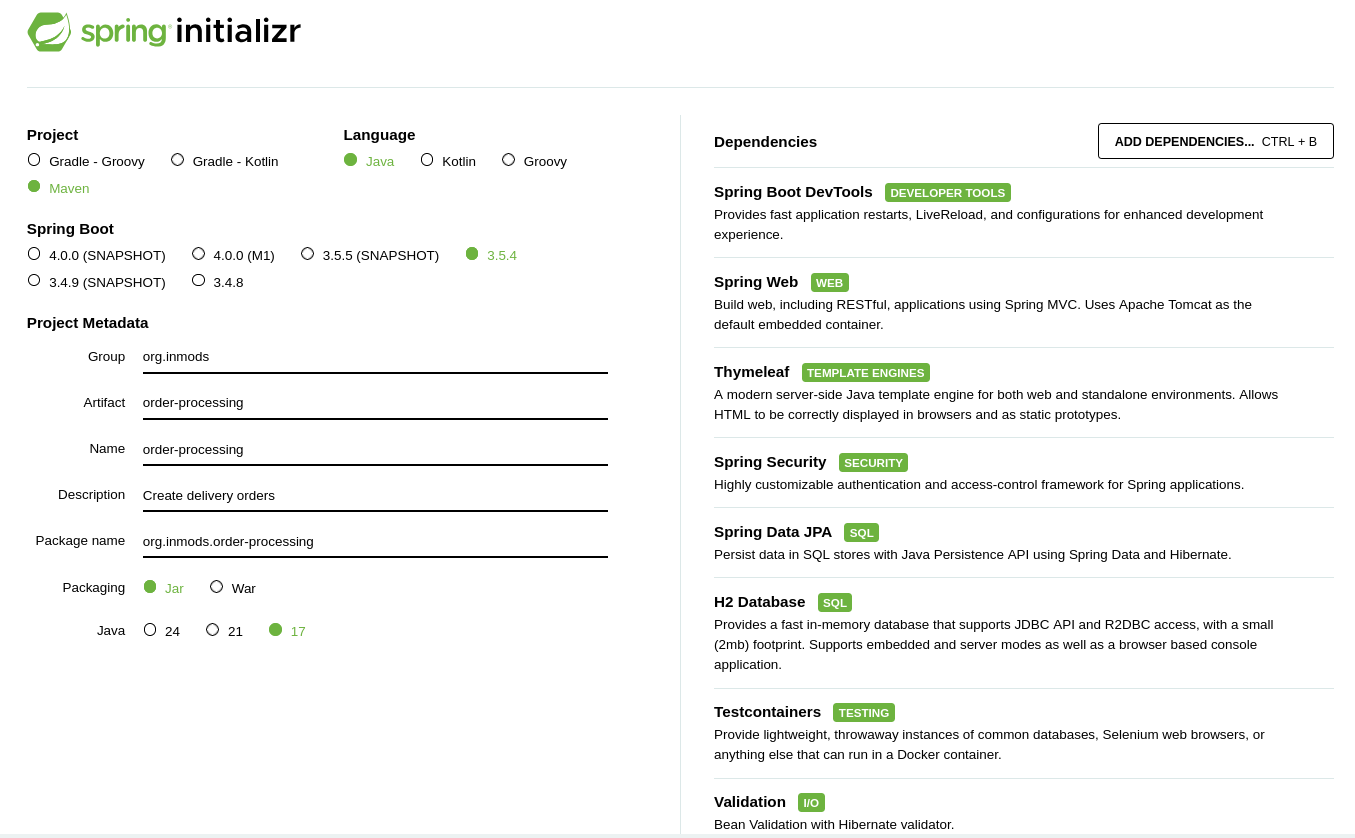

1. Go to https://start.spring.io and enter the shown values:



   Figure 3: Spring initializr for order-processing

   with the dependencies: DevTools, Spring Web, Thymeleaf, Spring Security, Validation, Spring Data JPA, Spring gRPC, H2 Database, Testcontainers

2. Press Generate Button (CTRL-+) and download the ZIP-File order-processing.zip.
3. Unpack this zip file into the project directory.

4. Add and commit the created directory

   git add order-processing
   git commit -m "added module"


5. Add the file delivery_job.proto to the directory src/main/proto:

   syntax = "proto3";

   option java_multiple_files = true;
   option java_package = "org.inmods.orderprocessing";
   option java_outer_classname = "DeliveryJobProto";
   import "google/protobuf/empty.proto";
   package inmods;

   service DeliveryJob {
    rpc FindCities(google.protobuf.Empty) returns (stream City) {}
    rpc Create(DeliveryOrder) returns (Confirmation) {}
   }

   message City {
    string name = 1;
    string country = 2;
   }

   message DeliveryOrder {
    string fromCity = 1;
    string toCity = 2;
   }

   message Confirmation {
    string vehicle = 1;
    double dist = 2;
    double pickup = 3;
   }


6. Open your Java IDE (Intellij, Eclipse, VisualCode, Netbeans) and import order-processing files as a Maven project.
7. Create the package org.inmods.orderprocessing.model

8. Create the class Order with its getter and setter methods:

   package org.inmods.orderprocessing.model;

   import javax.persistence.Entity;
   import javax.persistence.GeneratedValue;
   import javax.persistence.GenerationType;
   import javax.persistence.Id;
   import javax.persistence.Table;

   @Entity
   @Table(name="DeliveryOrder")
   public class Order {
     @Id
     @GeneratedValue(strategy = GenerationType.SEQUENCE)
     private Long id;
     private String fromCity;
     private String toCity;
     private Double distance;
   }


9. Create the package org.inmods.orderprocessing.repository

10. Create the interface OrderRepository

    package org.inmods.orderprocessing.repository;
    public interface OrderRepository extends JpaRepository<Order, Long> {}


11. Add the package org.inmods.orderprocessing.service

12. Create the class OrderService

    package org.inmods.orderprocessing.model;

    import javax.persistence.Entity;
    import javax.persistence.GeneratedValue;
    import javax.persistence.GenerationType;
    import javax.persistence.Id;
    import javax.persistence.Table;

    @Entity
    @Table(name="DeliveryOrder")
    public class Order {
      @Id
      @GeneratedValue(strategy = GenerationType.SEQUENCE)
      private Long id;
      private String fromCity;
      private String toCity;
      private Double distance;
    }


13. Add the package org.insmod.orderprocessing.controller

14. Create the class OrderController:

    package org.inmods.orderprocessing.controller;

    import java.util.List;
    import java.util.Optional;

    import org.inmods.orderprocessing.Confirmation;
    import org.inmods.orderprocessing.DeliveryJobGrpc;
    import org.inmods.orderprocessing.DeliveryOrder;
    import org.inmods.orderprocessing.model.Order;
    import org.inmods.orderprocessing.service.OrderService;
    import org.slf4j.Logger;
    import org.slf4j.LoggerFactory;
    import org.springframework.beans.factory.annotation.Autowired;
    import org.springframework.beans.factory.annotation.Value;
    import org.springframework.stereotype.Controller;
    import org.springframework.ui.Model;
    import org.springframework.validation.BindingResult;
    import org.springframework.web.bind.annotation.ExceptionHandler;
    import org.springframework.web.bind.annotation.PathVariable;
    import org.springframework.web.bind.annotation.RequestMapping;
    import org.springframework.web.bind.annotation.RequestMethod;
    import org.springframework.web.client.RestClientResponseException;
    import org.springframework.web.servlet.ModelAndView;

    import jakarta.servlet.http.HttpServletRequest;
    import jakarta.validation.Valid;

    @Controller
    @RequestMapping("/")
    public class OrderController {
            Logger logger = LoggerFactory.getLogger(OrderController.class);
        @Autowired
        OrderService orderService;
        @Autowired
        DeliveryJobGrpc.DeliveryJobBlockingStub stub;

        @RequestMapping
        public String getAllOrders(Model model){
            List<Order> orders = orderService.findAll();
            model.addAttribute("orders", orders);
            return "list-orders";
        }

        @RequestMapping(path = "/create", method = RequestMethod.POST)
        public String create(@Valid Order order, BindingResult result, Model m)
        {
            if(result.hasErrors()) {
                logger.warn("validation error {}", m);
                return "add-edit-order";
            }
            orderService.save(order);
            return "redirect:/";
        }

        @RequestMapping(path = {"/edit", "/edit/{id}"})
        public String edit(Model model, @PathVariable("id") Optional<Long> id)
        {
            if (id.isPresent()) {
                Optional<Order> order = orderService.findById(id.get());
                model.addAttribute("order", order.get());
            } else {
                model.addAttribute("order", new Order());
            }
            return "add-edit-order";
        }

        @RequestMapping("/start/{id}")
        public String start(Model model, @PathVariable("id") Long id){
            Optional<Order> order = orderService.findById(id);
            DeliveryOrder request = DeliveryOrder.newBuilder()
                            .setFromCity(order.get().getFromCity())
                            .setToCity(order.get().getToCity()).build();
            Confirmation confirmation = stub.create(request);

            order.get().setDistance(confirmation.getDist());
            orderService.save(order.get());
            logger.info("Vehicle {} Dist {}", confirmation.getVehicleBytes().toString(), confirmation.getDist());
            return "redirect:/";
        }

        @ExceptionHandler(RestClientResponseException.class)
        public ModelAndView handleError(HttpServletRequest req, Exception ex) {
            logger.error("Request: " + req.getRequestURL() + " raised " + ex);

            ModelAndView mav = new ModelAndView();
            mav.addObject("exception", ex);
            mav.addObject("url", req.getRequestURL());
            mav.setViewName("error");
            return mav;
        }

    }


15. Add the file add-edit-order.html to the directory src/resources/templates:

    <!DOCTYPE html>
    <html xmlns:th="http://www.thymeleaf.org">

    <head>
      <meta charset="utf-8">
      <meta http-equiv="x-ua-compatible" content="ie=edge">
      <title>Add Order</title>
      <meta name="viewport" content="width=device-width, initial-scale=1">
      <link rel="stylesheet" href="https://stackpath.bootstrapcdn.com/bootstrap/4.1.3/css/bootstrap.min.css">
      <link rel="stylesheet" href="https://use.fontawesome.com/releases/v5.4.1/css/all.css">
    </head>

    <body>
    <div class="container my-5">
      <h3> Edit Order</h3>
      <div class="card">
        <div class="card-body">
          <div class="col-md-10">
            <form action="#" th:action="@{/create}" th:object="${order}"
                  method="post">
              <div class="row">
                <div class="form-group col-md-8">
                  <label for="fromCity" class="col-form-label">From</label>
                  <input type="text" th:field="*{fromCity}" class="form-control"
                         id="fromcity" placeholder="From City" />
                </div>
                <div class="form-group col-md-8">
                  <label for="toCity" class="col-form-label">To</label>
                  <input type="text" th:field="*{toCity}" class="form-control"
                         id="tocity" placeholder="To City" />
                </div>

                <div class="col-md-6">
                  <input type="submit" class="btn btn-primary" value=" Submit ">
                </div>

                <input type="hidden" id="id" th:field="*{id}">

              </div>
            </form>
          </div>
        </div>
      </div>
    </div>
    </body>

    </html>

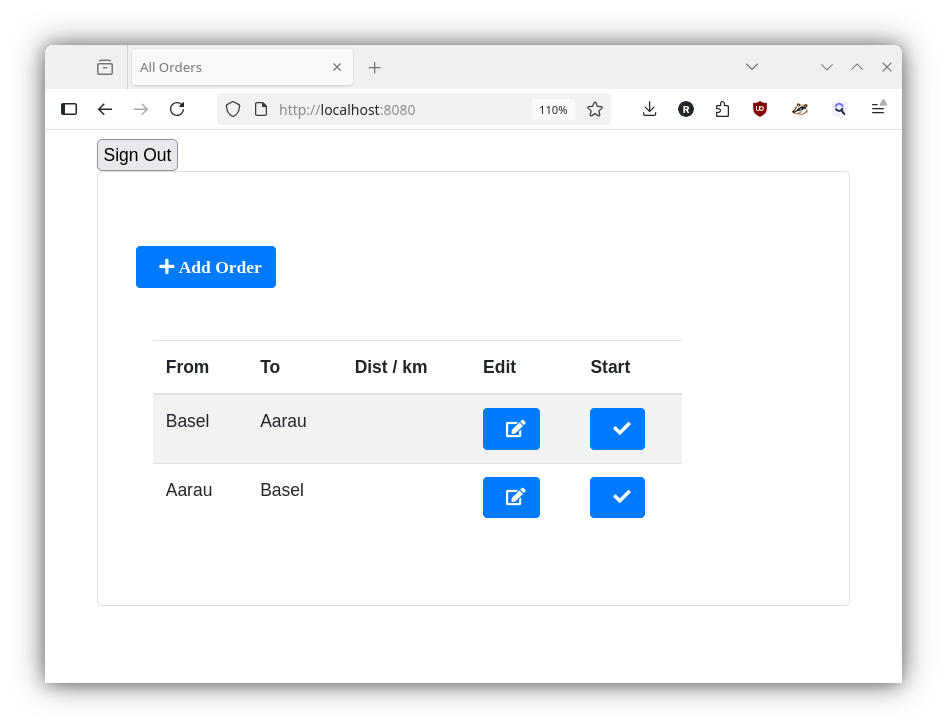

16. Add the file list-orders.html to the directory src/resources/templates:

    <!DOCTYPE html>
    <html xmlns:th="http://www.thymeleaf.org">

    <head>
      <meta charset="utf-8">
      <meta http-equiv="x-ua-compatible" content="ie=edge">
      <title>All Orders</title>
      <meta name="viewport" content="width=device-width, initial-scale=1">
      <link rel="stylesheet" href="https://stackpath.bootstrapcdn.com/bootstrap/4.1.3/css/bootstrap.min.css">
      <link rel="stylesheet" href="https://use.fontawesome.com/releases/v5.4.1/css/all.css">
    </head>

    <body>
    <div class="container my-2">
      <form th:action="@{/logout}" method="post">
          <input type="submit" value="Sign Out"/>
      </form>
      <div class="card">
        <div class="card-body">
          <div th:switch="${orders}" class="container my-5">
            <p class="my-5">
              <a href="/edit" class="btn btn-primary">
                <i class="fas fa-plus ml-2"> Add Order </i></a>
            </p>
            <div class="col-md-10">
              <h2 th:case="null">No record found !!</h2>
              <div th:case="*">
                <table class="table table-striped table-responsive-md">
                  <thead>
                  <tr>
                    <th>From</th>
                    <th>To</th>
                    <th>Dist / km</th>
                    <th>Edit</th>
                    <th>Start</th>
                  </tr>
                  </thead>
                  <tbody>
                  <tr th:each="order : ${orders}">
                    <td th:text="${order.fromCity}"></td>
                    <td th:text="${order.toCity}"></td>
                    <td th:text="${#numbers.formatDecimal(order.distance, 0, 1)}"></td>
                    <td>
                      <div th:if="${order.distance} == null">
                      <a th:href="@{/edit/{id}(id=${order.id})}"
                         class="btn btn-primary">
                        <i class="fas fa-edit ml-2"></i>
                      </a>
                      </div>
                    </td>
                    <td>
                      <div th:if="${order.distance} == null">
                      <a th:href="@{/start/{id}(id=${order.id})}"
                         class="btn btn-primary">
                        <i class="fas fa-check ml-2"></i>
                      </a>
                      </div>
                    </td>
                  </tr>
                  </tbody>
                </table>
              </div>

            </div>
          </div>
        </div>
      </div>
    </div>
    </body>

    </html>


17. Add following lines in src/main/resources/application.properties:

    spring.security.user.name=admin
    spring.security.user.password=aiPaigh4
    spring.grpc.client.channels.fleet-manager.address=0.0.0.0:5000


18. Add the following lines to the file DeliveryOrder:

    @Bean
    DeliveryJobGrpc.DeliveryJobBlockingStub stub(GrpcChannelFactory channels) {
            return DeliveryJobGrpc.newBlockingStub(channels.createChannel("fleet-manager"));
    }


19. Start DeliveryOrderProcessingApplication and enter your orders:



    Figure 4: Order Processing Main Window

create the directory event-streaming and add the File docker-compose.yaml (for details see https://hub.docker.com/r/apache/kafka):

services:
  event-streamer:
    image: apache/kafka:4.0.0
    ports:
      - '9092:9092'
    environment:
      - KAFKA_NODE_ID=1
      - KAFKA_AUTO_CREATE_TOPICS_ENABLE=true
      - KAFKA_PROCESS_ROLES=broker,controller
      - KAFKA_LISTENERS=PLAINTEXT://:9092,CONTROLLER://:9093
      - KAFKA_ADVERTISED_LISTENERS=PLAINTEXT://localhost:9092
      - KAFKA_CONTROLLER_LISTENER_NAMES=CONTROLLER
      - KAFKA_LISTENER_SECURITY_PROTOCOL_MAP=CONTROLLER:PLAINTEXT,PLAINTEXT:PLAINTEXT
      - KAFKA_CONTROLLER_QUORUM_VOTERS=1@event-streamer:9093

1. create directories delivery-tracking/etc, delivery-tracking/panel, delivery-tracking/panel/templates

   mkdir -p delivery-tracking/{etc,panel,panel/templates}


   NOTE: this command only works on a unix sh (such as bash), following commands create the same directory structure:

   mkdir delivery-tracking/
   mkdir delivery-tracking/etc
   mkdir delivery-tracking/panel
   mkdir delivery-tracking/panel/templates


2. add file config.ini with following content to directory delivery-tracking/etc

   [event-streamer]
   host=event-streamer
   port=9092


3. add file __init__.py to the directory delivery-tracking/panel

   from flask import Flask, Response
   from flask import render_template
   import os
   import json
   from configparser import ConfigParser
   from pathlib import Path
   from .monitor import VehicleMonitor
   import logging

   logging.basicConfig(level=logging.INFO,
                       format='%(asctime)s %(message)s')

   # initialize the configuration parser with all the existing environment variables
   config = ConfigParser(os.environ)

   # default location of config file. config-localhost.ini is used if the environment variable isn’t set
   config_file = Path(os.environ.get('CONFIG_FILE','config-localhost.ini'))

   # verify file exists before attempting to read and extend the configuration
   if config_file.is_file():
       config.read(str(config_file))

   port = config.getint('event-streamer', 'port', fallback=9092)
   host = config.get('event-streamer', 'host', fallback='localhost')
   monitor = VehicleMonitor(host, port)

   def create_app():
       app = Flask(__name__)
       #app.config['EXPLAIN_TEMPLATE_LOADING'] = True

       def activate():
           monitor.open()

       @app.route('/')
       def index():
           return render_template('index.html')

       @app.route('/positions')
       def positions():
           def events():
               for msg in monitor.get_messages():
                   vehicle = json.loads(msg.value)
                   loc = vehicle['location']
                   pos = json.dumps(dict(id=vehicle['id'], lon=loc[0], lat=loc[1]))
                   app.logger.info(pos)
                   yield f'data:{pos}\n\n'

           return Response(events(),
                           mimetype="text/event-stream")

       with app.app_context():
           activate()
       return app


4. add the file monitor.py to the directory delivery-tracking/panel:

   import kafka
   import logging
   import time


   class VehicleMonitor(object):
       def __init__(self, host, port):
           self.servers = f'{host}:{port}'
           self.topicName = 'vehicle-positions'

       def open(self):
           for i in range(5):
               try:
                   self.consumer = kafka.KafkaConsumer(
                       self.topicName,
                       bootstrap_servers=self.servers)
                   logging.info('Vehicle monitor listening on %s', self.servers)
                   break

               except kafka.errors.NoBrokersAvailable:
                   pass
               time.sleep(2)
           if not hasattr(self, 'consumer'):
               logging.error('Vehicle monitor NoBrokersAvailable %s for topic %s',
                             self.servers, self.topicName)

       def get_messages(self):
           """consume events from kafka topic"""
           for msg in self.consumer:
               if msg:
                   yield msg
               else:
                   break
           self.consumer.close()


5. add the file index.html to the directory delivery-tracking/panel/templates:

   <!DOCTYPE html>
   <html lang="en">
   <head>
       <meta charset="UTF-8">
       <title>Delivery Tracking</title>

         <link rel="stylesheet" href="https://unpkg.com/leaflet@1.9.4/dist/leaflet.css"
             integrity="sha256-p4NxAoJBhIIN+hmNHrzRCf9tD/miZyoHS5obTRR9BMY="
             crossorigin=""/>

        <script src="https://unpkg.com/leaflet@1.9.4/dist/leaflet.js"
             integrity="sha256-20nQCchB9co0qIjJZRGuk2/Z9VM+kNiyxNV1lvTlZBo="
             crossorigin=""></script>
   </head>
   <body>
     <h1>Delivery Tracking</h1>
     <div id="mapid" style="width:900px;height:600px;" />
     <script>
       var mymap = L.map('mapid').setView([47.57, 7.58], 8);
       L.tileLayer('https://tile.openstreetmap.org/{z}/{x}/{y}.png', {
       attribution: 'Map data &copy; <a href="https://www.openstreetmap.org/">OpenStreetMap</a>',
       maxZoom: 18
       }).addTo(mymap);

       mapMarkers = new Map();
       var source = new EventSource('/positions');
       source.addEventListener('message', function(e) {
           pos = JSON.parse(e.data);
           console.log(pos);
           if( mapMarkers.has(pos.id) ) {
               markers = mapMarkers.get(pos.id);
               for(var i=0; i < markers.length; i++){
                   mymap.removeLayer(markers[i]);
               }
           }
           else {
               mapMarkers.set(pos.id, []);
           }
           m = L.marker([pos.lat, pos.lon]).addTo(mymap);
           markers = mapMarkers.get(pos.id);
           markers.push(m);
       });
     </script>
   </body>
   </html>


6. activate python environment and start web server:

   source inmods-venv/bin/activate
   flask --app panel run --port 5001


7. open with your web browser: http://localhost:5001



   Figure 5: Delivery Tracking Main Window
